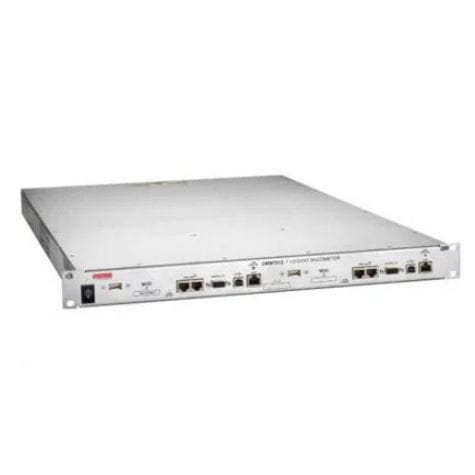

Digital multimeter DMM7512

rack-mount1000 V3 A

The DMM7512 7.5 digit multimeter combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other. Two DMM7510s built into one compact enclosure The DMM7512 consists of two, independent, identical, 7½-digit DMM7510 digital multimeters (DMMs) with a few less measurement functions. The two DMM7512 DMMs have the same accuracy, sensitivity, and speed as the DMM7510 so that the DMM7512 can be seamlessly integrated into a test system that previously used DMM7510s. • Sample complex waveforms with the 1Msample/s, 18-bit digitizer; store up to 27.5 million readings • Test components used in low power circuits with 0.1 µΩ and 1 pA sensitivities • Maximize test quality with high test uncertainty ratios using 1-year accuracy DC volts as good as 14 ppm • Built-in Test Script Processor (TSP®) enables test sequence execution without controller interaction, reducing test time and communication overhead, while availing the controller for other tasks Double Test System Density Save valuable rack space with two DMMs in a 1U high rack space. Compared to two 2U high DMM7510s, you can get twice the measurement capability in half the space.
