AC motor / asynchronous / 6-pole / 4-pole
NEMA series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

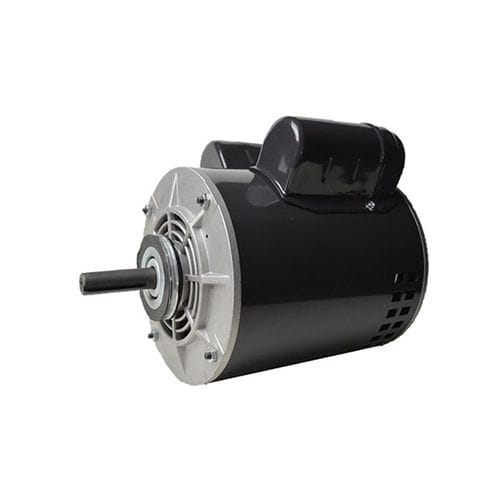

AC motor AC motor - NEMA series
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Type:

    asynchronous

  • Other characteristics:

    6-pole, 4-pole, 8-pole, with gearbox, high-efficiency, aluminum, low-noise, with permanent capacitor, custom, for pumps, blower, for medical equipment, cast iron

  • Torque:

    Max.: 2.286 ft.lb

    Min.: 0.15 ft.lb

  • Power:

    120 W, 560 W (0.163 hp)

  • Rotational speed:

    Max.: 1,725 rpm (10,838.49 rad.min-1)

    Min.: 1,050 rpm (6,597.34 rad.min-1)

Description

TelcoMotion’s NEMA series AC motors have advantages of high efficiency, large starting torque, low noise, and optimized structure. It’s mounting type, power class and performance requirement all comply to the standard of National Electrical manufactures Association. Our featured NEMA AC products include NEMA 42, NEMA48, and NEMA 56.

Product Highlights
Feature
•NEMA 42, NEMA 48, NEMA 56
•Energy saving choice
•Frame options include 48, 48Y, 48Z, 56, 56C, 56J, 56CZ, 56YZ
•Two kinds of protection class: OPEN (Open Air-Over), TE (Totally Enclosed Air-Over), and ODP (Open Dripproof)
•Insulation classes including B (130⁰ C) or F (155⁰ C) rise at full load
•Housing materials are available in rolled Steel, cast iron and aluminum
•An excellent choice for quality and dependability
•Variety of enclosures and mounting configuration
•Special shaft and mounting can be customized to customer's requirement

Application
•Heating and cooling equipment
•Blowers
•Kitchen hoods
•Medical equipment
•Medical pumps
•Fan coil units

Features
Frame SizeNEMA48
Motor TypePSC (Permanent Split Capadtor) and Split Phase
Voltage115VAC, 208 ~ 230VAC, 460VAC
Max. Output Power3/4 HP (560W)
Max. Speed1725 RPM
Number of Pôles4, 6,8
Number of Speeds1, 2,4
Number of Phase1
RotationCW/CCW
BearingTypeBail and Sleeve Bearings
Insulation ClassB (130° C), F(155° C)
En dos uneOPEN (Open Air-Over) TE (Totally Enclosed Air-Over) ODP (Open Dripproof)
OptionsGearboxes
