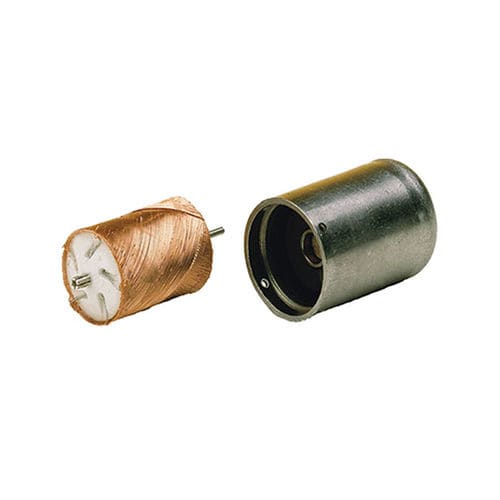

Precision motor CD series

brushedDC24 V

TelcoMotion has specialized in the design and manufacture of DC coreless motors based on customer expectations. Telco Motion’s DC coreless motor has a series of products in diameters of 16,20,22,28 and 36 mm with torque ranging from 4.76 to 118 mN.m. An external driver can be added in to our 36mm coreless motor. More than 60 different types of gearboxes are available. Other Available modifications include custom windings, shaft modification (Flat, Pinion, Keyway, Knurl, CrossPin, Hollow shaft), special bearing and mounting configuration. Product Highlights Feature •Precise long life motors •High efficiency and high torque in a small package •Sizes ranges from 16mm to 36mm diameter •Output power is from 1.0 to 45 watts •Double winding technology •Gearheads, encoders, shaft modifications available •Perfect for battery operated applications •Excellent for use when space is a premium •Size is 1/3 less when compared with standard type brushed motor of same power Application •Military Industry – tracking and aiming missile systems •Medical Equipment – X- ray, peristaltic pumps, and ophthalmic tools •Instrumentation – laser leveling devices, precision balances and gas analyzing device •Security Equipment – air sampling, camera platforms and electronic lock •Office Equipment – card readers, scanners and printers •Machinery & Equipment – robot, electric tools and miniature pumps Features Axial (Dynamic)<0.8N Radial (4mm From Jamming Ring)<1.4N Press-Fit Force (Static)<15N Axial Play (Measured Under Less Thank 4N Axial Force0.05 - 0.15mm Maximum Radial Play0.02mm
