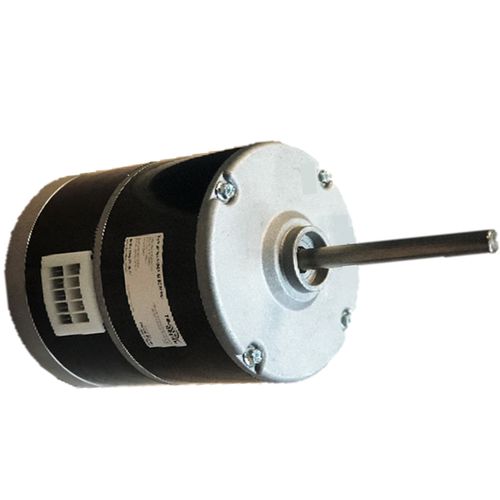

EC motor TorqueSet®

single-phase230 Vfor pumps

Telco’s constant torque EC Motor has been specifically design for multi-purpose HVAC and Indoor Air Quality applications. The TorqueSet® configuration comes with an on-board connector interface that allows both live programming capabilities during the testing phase and compatibility with existing systems for manufacturing and installation. Product Highlights Feature •Integrated driver •Size: NEMA 48 •Control method: 5 tap on-board connector, 24 VAC •Voltage Options: 115 VAC or 230 VAC, 50/60 Hz, 1 phase •Control mode: Constant torque •Speed range: 300 to 4000 rpm •Efficiency up to 90% at 1 HP •Power: 1/4, 1/3, 1/2, 3/4, 1 HP options •Software included for on-site programming •Rotation: CW/CCW •Operating temperature: - 20°C to + 40°C •Safety features include voltage, current, and thermal protection Application •Power Roof Ventilator •Centrifugal Blower •Furnance •Heat Pump •Evaporator •Condensing Unit •Fan Coil •Air Handler •Belt Driven Application •Propeller Fan •Air Conditioner
