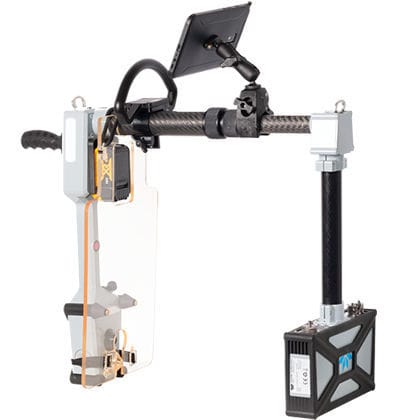

X-ray inspection system GO-SCAN C-VIEW

for corrosion detectionfor pipesportable

YOUR CUI INSPECTION PARTNER Go-Scan C-view is a light weight ruggedized real time X-ray imaging system specifically designed for hand-held inspection such, among other, Corrosion Under Insulation (CUI) inspection. It includes a high speed and high resolution CMOS imager and a battery-operated 70kV x-ray tube designed for portable field operation. The video imaging system captures images and displays them on a hand held display in real-time. PRODUCT INFORMATION Detector technology : CMOS Pixel pitch : 99 µm Active area : 102 x 153 / 4.0 x 6.0 mm / in Active resolution : 1032 x 1048 pxl Video frame rate : Up to 30 fps Communication : Wireless or Wired Adjustable arm lenght : 30 to ~65/ 12 to ~26 mm / in Energy range : 40 to ~ 70 kV X-ray max power output : 12 W Power supply : Dewalt battery Battery performance : ~2 (with 5 Ah battery) h Weight : < 6.5 / 14.3 kg / lbs Operational temperature : -20, +50 / -4, +122 C° / F° Storage temperature : -30, +60 / -22, +140 C° / F° IP rating : 65
