Directional X-ray generator CP200B

battery-poweredportable

Product overview

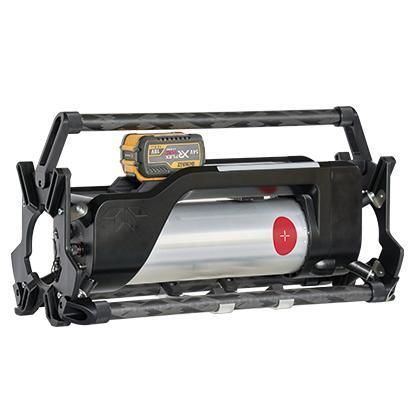

Battery-operated portable X-ray generator for industrial nondestructive testing (NDT). The CP200B provides 45–200 kV output, a small focal spot and continuous power mode to support digital radiography workflows in the field.

Lightness and performance
Weighing 15.1 kg with guard rings (12.5 kg without), the CP200B delivers 45–200 kV and 0.2–1.5 mA tube current with a maximum anode power of 300 W. Powered by Dewalt Battery 54V, it offers a 100% duty cycle at 30°C and an optical focal spot of 0.8 mm for fine detail imaging.

Design for easy inspection
Features include a rotating tank for optimal angulation, intuitive controls, wireless and wired connectivity options, rugged ergonomic handles and V-shaped guard rings for stable pipe positioning. IP65 protection (battery excluded) and wide operating temperatures enable use in demanding field environments.

Applications

• Oil & gas
• Aerospace
• Welding inspection
• Textiles, artworks and conservation

Technical table
Attribute | Unit | Value
Radiation geometry | - | Directional
Power supply | - | Dewalt Battery 54V
Output voltage range | kV | 45 to 200
Tube current range | mA | 0.2 to 1.5
Tube current at full output | mA | 1.5
Maximum power at the anode | W | 300
Constant power mode | - | Yes
Working cycle at 30°C (*) | % | 100
Steel penetration (**) | mm/in | 33 / 1.3
Weight (without guard rings) | Kg/lbs | 12.5 / 27.5
Weight (with guard rings) | Kg/lbs | 15.1 / 33.9
Overall dimensions (L x W x H) | mm/in | 672 x 267 x 337 / 26.4 x 10.5 x 13.3
Leakage dose at 1 m at full output | mSv/h | < 2
Optical focal spot according to EN 12543 | mm/in | 0.8 / 0.03
Maximum useful angle | ° | 40 x 60
Inherent filtration | mm/in | 0.8 / 0.03 (Cu) Equiv. 3.5 / 0.1 (Al)
Waterproof level | - | IP65 (battery excluded)
Operating temperature | °C/F° | -30 to +60 / -22 to +140
Storage temperature | °C/F° | -40 to +80 / -40 to +176
Guard rings | - | 2
(*) Open air
(**) 700mm FFD, 10 min exposure on D700 film, density 2

Accessories

• Tripod
• Extra battery
• Trigger
• External power supply
• Compatible with Sherlock NDT

Technical specifications

• Model: CP200B
• Output voltage: 45 to 200 kV
• Tube current range: 0.2 to 1.5 mA
• Tube current at full output: 1.5 mA
• Maximum anode power: 300 W
• Constant power mode: Yes
• Duty cycle (at 30°C): 100%
• Steel penetration: 33 mm (1.3 in)
• Weight without guard rings: 12.5 kg (27.5 lbs)
• Weight with guard rings: 15.1 kg (33.9 lbs)
• Overall dimensions: 672 x 267 x 337 mm (26.4 x 10.5 x 13.3 in)
• Leakage dose at 1 m (full output): < 2 mSv/h
• Optical focal spot (EN 12543): 0.8 mm (0.03 in)
• Maximum useful angle: 40 x 60°
• Inherent filtration: 0.8 mm Cu / equiv. 3.5 mm Al
• Waterproof level: IP65 (battery excluded)
• Operating temperature: -30 to +60 °C (-22 to +140 °F)
• Storage temperature: -40 to +80 °C (-40 to +176 °F)
• Guard rings: 2
• Power supply: Dewalt Battery 54V
• Focal spot: 0.8 mm
