NDT flat panel detector Rad-icon 2329

X-rayportabledigital

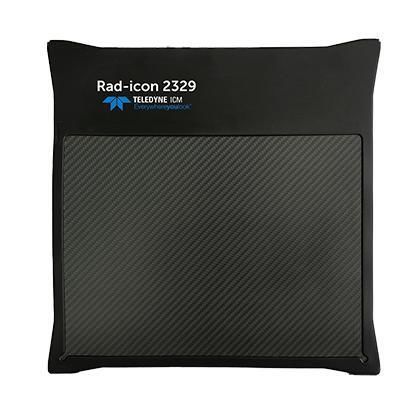

Rad-icon 2329 — digital X-ray flat-panel detector for industrial NDT
The Rad-icon 2329 offers a 49.5 µm pixel pitch on an active area of 228 x 292 mm (23 x 29 cm), delivering a unique resolution-to-size ratio for portable industrial radiography. Image quality achieves Class B (ISO 17636-2) for most applications. The detector combines a high-resolution CMOS active pixel sensor with a shock-absorbing, portable design and real-time feedback suited to field NDT tasks such as weld and casting inspection.

Highlights

• Resolution: 49.5 µm pixel pitch
• Active area: 23 x 29 cm (228 x 292 mm)
• Weight: 8 kg (without sleeve)

Product details (table)
Technology — CMOS Active Pixel
Pixel Pitch (µm) — 49.5
Active Area (mm/in) — 228 x 292 / 9 x 11.5
Active Resolution (pxl) — 4608 x 5890
Data Interface — GigE
ADC Conversion (bits) — 14
Frame Rate - 1x1 (GigE) (fps) — up to 2
Power Supply — Main
Power Consumption (W) — 15 to 40
Overall Dimension (without sleeve) (mm/in) — 331 x 331 x 23 / 13 x 13 x 0.9
Overall Weight (without sleeve) (Kg/lbs) — 8 / 17.6
Operating Temperature (C°/F°) — 0 to +50 / +32 to +122
Storage Temperature (C°/F°) — -10 to +55 / +14 to +131
Humidity (% R. H.) — 20 to 80
X-Ray Energy Range (kV) — 10 to 225

Notes
The detector incorporates a high-resolution CMOS active pixel sensor and provides real-time feedback and a shock-absorbing design optimized for portable NDT applications.

Technical specifications

• Technology: CMOS Active Pixel
• Pixel pitch: 49.5 µm
• Active area: 228 x 292 mm (23 x 29 cm)
• Active resolution: 4608 x 5890 pixels
• Interface: GigE
• ADC conversion: 14 bits
• Frame rate (1x1, GigE): up to 2 fps
• Power consumption: 15 to 40 W
• Power supply: main
• Overall dimensions (without sleeve): 331 x 331 x 23 mm (13 x 13 x 0.9 in)
• Weight (without sleeve): 8 kg (17.6 lbs)
• Operating temperature: 0 to +50 °C (32 to 122 °F)
• Storage temperature: -10 to +55 °C (14 to 131 °F)
• Relative humidity: 20 to 80 % R.H.
• X-ray energy range: 10 to 225 kV
