X-ray radiation meter

Performance

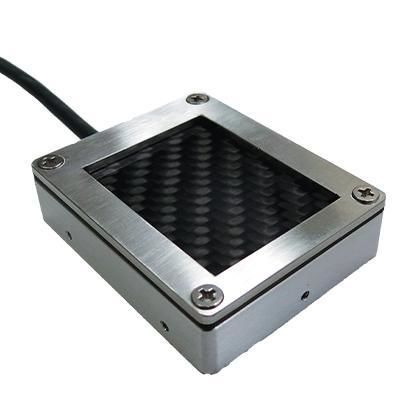

The Remote RadEye HR X-ray detector provides high spatial-resolution radiation imaging in a slim, lightweight package. It delivers 20 µm pixel resolution and supports X-ray energies up to 90 kV, making it suitable for detailed inspection tasks in confined or hard-to-reach locations. Typical uses include NDT/industrial inspection, x-ray crystallography and general radiography.

Design and connectivity
The detector's sensing module is mounted at the end of a detachable cable to access small corners and tight spaces. The unit connects to a PC via USB, enabling straightforward integration for field or laboratory workflows. The design emphasizes portability and durability for on-site inspections.

Product highlights
Energy range: Up to 90 kV
Active area: 33 x 24.9 mm
Resolution: 20 µm

Applications

• Non-destructive testing (NDT) and industrial inspection
• Scientific research (e.g. x-ray crystallography)
• General radiography where high resolution and access to confined spaces are required

Technical specifications

• Model: Remote RadEye HR
• Detector type: High-resolution X-ray detector / X-ray camera
• Energy range: Up to 90 kV
• Active area: 33 x 24.9 mm
• Pixel / spatial resolution: 20 µm
• Sensing module: Remote sensor module on end of detachable cable for access to tight spaces
• Interface / connection: USB (connects to PC via USB cable)
• Form factor: Slim, lightweight, rugged design for tight/difficult-to-reach spaces
• Typical uses: NDT/industrial inspection, x-ray crystallography, general radiography
