Compression leak detector TDLC

pressureautomatedfor industry

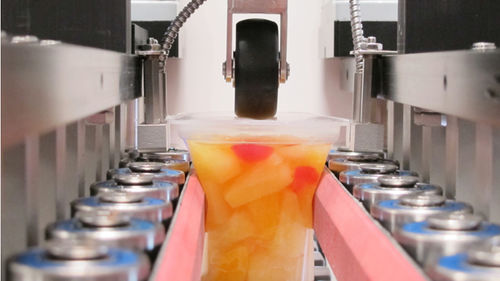

TapTone's TDLC sensor is designed to measure pressure on foil and film sealed containers from the top of the container instead of the sides. This patented sensor achieves a more sensitive measurement than traditional testing methods. The TDLC sensor can be configured on a Compression with standard or low profile belts or Dual Sensor Compression system with standard belts only. A User Interface is required for operation of the TDLC sensor. The TDLC sensor is compatible with the T550 and PRO Series user interfaces. TDLC Sensor • Rapid on-line inspection: up to 1.52 m/sec (300 ft/min) maximum • Available with low profile belts for small container inspection (T550 compression only) • Available with single or dual sensors • User Interface Required: Can be used with the T550 or Pro Series user interface Specifications OPERATING SPEED : up to 1.52 m/sec (300 ft/min) maximum CONVEYOR HEIGHT : Dual Sensor: 91.4 cm - 132 cm (36 -52 in) ; with optional leg extensions: 121.9 - 162.5 cm (48 -64 in) Single Sensor: up to 2.18m (86 in) (based on 0.076m or 3 in container) BELT OPENING : Dual Sensor: 159 mm (6.25 in) maximum Single Sensor: 117.8 mm (7 in) maximum SHAFT ENCODER : Stainless steel AC LINE VOLTAGE : 230 VAC, 1 phase REJECT OUTPUTS : 2 ALTITUDE : Sea level to 3,035m (10,000 feet) MATERIAL (Dual Sensor) : Transport Deck: Stainless steel Frame Material: Stainless steel Wash Down: Low-pressure water MATERIAL (Single Sensor) : Transport Deck Material: Aluminum hard coat Frame material finish: Stainless Steel Wash Down: Low-pressure water Applications Leak detection in film and foil sealed containers
