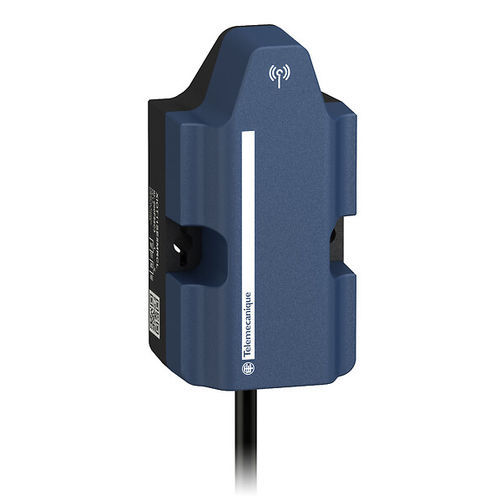

Monitoring wireless sensor network (WSN) coordinator XIOT series

networkbatterytransmitter

Wireless transmitter, Dry contact LPWAN Subscription not included Datasheet Main [Us] rated supply voltage 3.6 V nominal Battery type Lithium integrated Electrical connection Cable 2 m Range of product Telemecanique Cloud connected sensor XIOT Product or component type Wireless transmitter Type of license Registration required Communication network type Sigfox Europe Mode of transmission On change on one of the inputs Acquisition speed 6 frames/h Transmission rate 100 bit/s Fixing mode By screws Operating distance <= 10000 m Environment Directives 1999/5/EC - R&TTE directive Product certifications Sigfox ready Standards ETSI EN 300 220-2 IP degree of protection IP66 Packing Units Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 5.0000 CENTIMETER Package 1 width 12.8000 CENTIMETER Package 1 length 22.0000 CENTIMETER Package 1 weight 294.0000 GRAM Unit type of package 2 S03 Number of units in package 2 18 Package 2 height 30.0000 CENTIMETER Package 2 width 30.0000 CENTIMETER Package 2 length 40.0000 CENTIMETER Package 2 weight 5.8210 KILOGRAM
