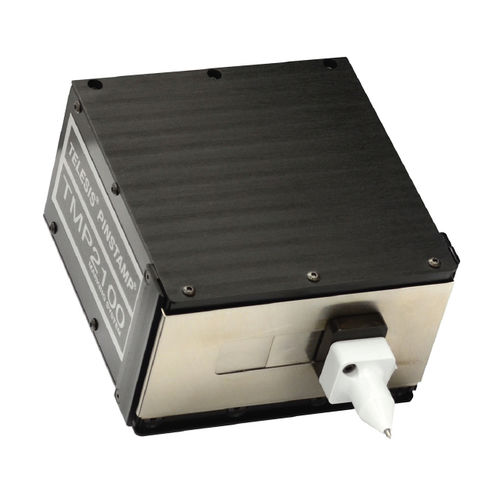

Dot peen marking machine TMP2100
for integration

dot peen marking machine
dot peen marking machine
Add to favorites
Compare this product


Characteristics

Technique
dot peen
Configuration
for integration
X travel

20 mm (1 in)

Y travel

50 mm (2 in)

Description

Marking Window (in): 0.79 in x 1.96 in Marking Window (mm): 20 mm x 50 mm Max Marking Speed: 6 characters / second Marking Depth (in): 0.001 - 0.013 in Marking Depth (mm): 0.03 - 0.33 mm Max Character Height (in): 0.79 in Max Character Height (mm): 20 mm Max Resolution: 200 dpi Logo Marking Capable: Yes 2D Code Marking Capable: Yes Radial Marking Capable: Yes Programmable Z-Axis: Yes Floating Pin Technology: Yes Maximum Number of Pins: 1 Mounting: Fixtured Standard | Handheld Optional Available in Electronic: Yes
