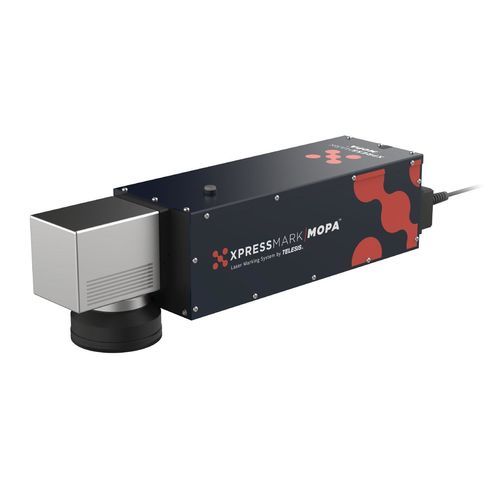

Fiber laser marking machine XpressMark MOPA™

MOPA laserbrassfor plastics

Product Overview
XpressMark MOPA™ combines the reliability of the XpressMark™ line with adjustable MOPA pulse-width control to deliver faster cycle times, higher-contrast marks and extended material flexibility. AutoFocus™ provides automatic focal alignment for each part and Vari-Z™ compensates height variation without recalibration. Optional InLine Vision (Teleview™) enables in-process code reading and verification. The system is compact, industrial-grade and designed for production-line integration.

High-level Features

• MOPA (Master Oscillator Power Amplifier) technology with adjustable pulse parameters
• High beam quality for deep engraving and high-contrast color marking on metals including stainless steel
• Adjustable pulse control for delicate surfaces and a range of industrial metals
• AutoFocus™ for automatic per-part focal adjustment
• Vari-Z™ for height compensation without recalibration
• Optional InLine Vision (Teleview™) for code reading and verification
• Compact footprint and industry-standard communications for automation

Software
Merlin® software — integrated with XpressMark MOPA™ — for designing, managing and executing marks with an intuitive interface and advanced marking functions.

Materials

• Aluminum
• Copper
• Metals
• Plastics
• Stainless Steel
• Brass
• Titanium

Industries

• Aerospace & Defense
• Automotive and suppliers
• Construction & Housing
• Consumer products & manufacturing
• Medical device marking solutions

Applications / Typical Uses
Common uses include component marking, serialisation and traceability on metals and plastics:

• Aluminum
• Plastics
• Cold rolled steel
• Stainless steel
• Brass
• Titanium

Options & Accessories

• AutoFocus™
• Ethernet/IP
• Fume extraction system
• Mark-on-the-Fly ready
• Profinet
• Programmable mounting post
• Rotary axis fixture
• Teleview™ code reading (InLine Vision)
• Vari-Z™

Available Models

• XpressMark MOPA 30W Fiber Laser Marking Machine
• XpressMark MOPA 60W Fiber Laser Marking Machine
• XpressMark MOPA 100W Fiber Laser Marking Machine

Technology Options

• Optional Ethernet/IP and Profinet communications
• Optional Mark-On-The-Fly capability

Lens Marking Area
F160: 4.33" x 4.33" (110 mm x 110 mm)
F163: 4.33" x 4.33" (110 mm x 110 mm)
F254: 6.89" x 6.89" (175 mm x 175 mm)
F254*: 6.89" x 6.89" (175 mm x 175 mm)
F380: 9.84" x 9.84" (250 mm x 250 mm)
F420: 11.81" x 11.81" (300 mm x 300 mm)
F470: 13.78" x 13.78" (350 mm x 350 mm)
Note: Vision Heads use F160 and F254 standard lenses. (*Denotes lenses available for Vari-Z heads)

Lens Working Clearance
F160: 181 mm
F163*: 185 mm ± 16 mm
F254: 292 mm
F254*: 296 mm ± 39 mm
F380: 407 mm
F420: 435 mm
F470: 490 mm

Laser Head Dimensions
19.35" L x 5.24" W x 5.17" H (492 mm x 133 mm x 131 mm) — dimensions for XPM head; other models vary.

Technical Specifications

• Product: XpressMark MOPA™ fiber laser marker
• Technology: MOPA fiber laser (adjustable pulse width)
• Power options: 30W, 60W, 100W
• Key automation features: AutoFocus™, Vari-Z™, Mark-on-the-Fly (optional)
• Communications: Ethernet/IP and Profinet (optional)
• In-line vision: Optional Teleview™ code reading and verification
• Typical materials: aluminum, copper, metals, plastics, stainless steel, brass, titanium
• Lens marking areas: F160–F470 (see listing above)
• Laser head size: 492 mm x 133 mm x 131 mm (XPM head)
• Integration: compact footprint, designed for production-line and automated systems
