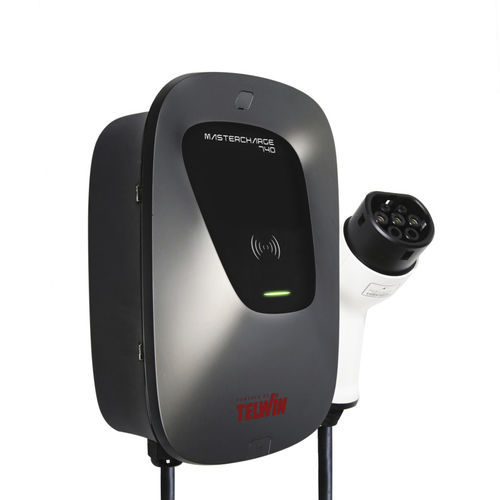

Electric vehicle charging station MASTERCHARGE 740

electric vehicle charging station
electric vehicle charging station
Add to favorites
Compare this product


for electric vehicles, AC, outdoor


Charging station for electric vehicles in AC alternating current (Mode 3). Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C). Mastercharge can only be used via authentication with a RFID badge by authorised users only. Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution. Features: - 7,4 kW power (32A 230V singlephase); - Mode 3 connection, Type 2 connector; - 5-metre long cable; - Activation via RFID badge (2 cards supplied); - Rating IP54; - Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms. SINGLE PHASE MAINS VOLTAGE 230 V MAINS FREQUENCY 50 Hz MAX ABSORBED POWER 7,4 KW MAX. CURRENT 32 A MAX POWER 3 EV CONNECTOR TYPE Type 2 RECHARGE MODE Mode 3 CABLE TYPE Case C PROTECTION DEGREE IP54 OVERVOLTAGE CATEGORY III DIMENSIONS 32,5 x 21, 5 x 7,7 cm WEIGHT 4,5 kg EAN CODE 8056151818423
