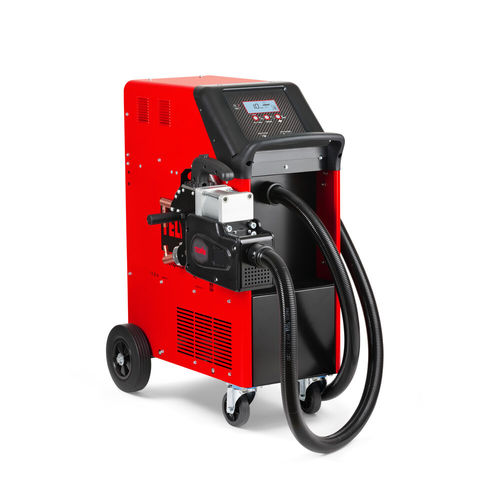

Resistance welding machine INVERSPOTTER 13400 X AQUA + ACC

spotautomatic400V three-phase

Electronic spot welding machine with liquid cooled pneumatic clamp and AQUA cooling unit. Fast spot welding thanks to the "Squeeze and Spot" function which allows the operator to supply current on command, only after the electrodes have been correctly positioned on the sheets. The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool. Automatic control of the gun cooling. POWER GUN technology: power circuits integrated in the clamp. Long and light cables for ample action range. Mains voltage monitor. Medium frequency, direct current (MFDC) inverter technology, resistance welding machine. The POWER GUN technology allows for high spot-welding currents with low absorption rates; the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets. The availability of programmes designed for continuous and pulsed spot welding on different materials (iron, HSS) and thicknesses makes the product easy to use. It is also possible to change the time and power parameters in the selected programmes. Fast spot welding thanks to the ‘Squeeze and Spot’ function, which allows the operator to deliver current on command, only after the electrodes have been correctly positioned on the sheets.
