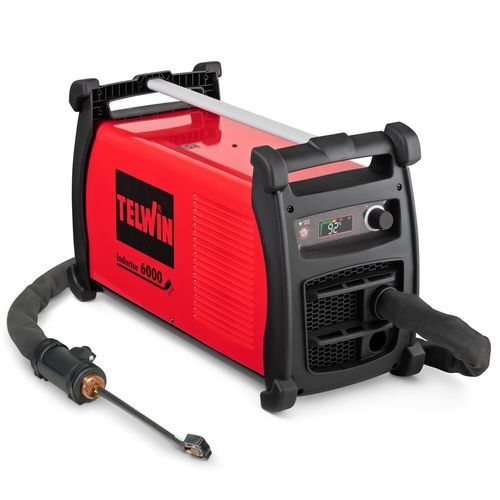

Workpiece induction heater INDUCTOR 6000 AQUA

200-240 Vportablehigh-frequency

Product overview
Portable induction heater for rapid release of bolts, nuts, gears, joints and screws. Adjustable heating power enables fast, localized and precise heat transfer to the workpiece. Equipped with a color LCD for operating status and parameter display. Liquid-cooled for continuous operation over time.

Key features

• Portable induction heater for fast release of bolts, nuts, gears, joints and screws
• Color LCD display for operation and parameter viewing
• Liquid cooling system for continuous use
• Automatic and manual power adjustment
• Liquid lock button for safe tool change
• Compact and easily portable
• Adjustable heating power to localize heat transfer precisely

Supply

• Supplied with an M12 induction tool with a 2 m cable

Optional / on-request accessories

• D20/F1 inductor head assembly
• INDUCTOR D90/F1 (code 801426)
• INDUCTOR D180/F2 (code 801427)
• INDUCTOR C180 (code 801424)
• INDUCTOR ADAPTER 28C (code 801425)

Technical specifications

• CODE: 835014
• SINGLE PHASE MAINS VOLTAGE: 200 - 240 V
• MAINS FREQUENCY: 50 / 60 Hz
• MAX ABSORBED POWER: 3.8 kW
• FUSE: 16 A
• HEATING FREQUENCY: 35 - 100 kHz
• MAX HEATING POWER: 3.3 kW
• PROTECTION DEGREE: IP23
• TANK CAPACITY: 2 l
• DIMENSIONS: 78 x 26 x 37.8 cm
• WEIGHT: 13.10 kg
