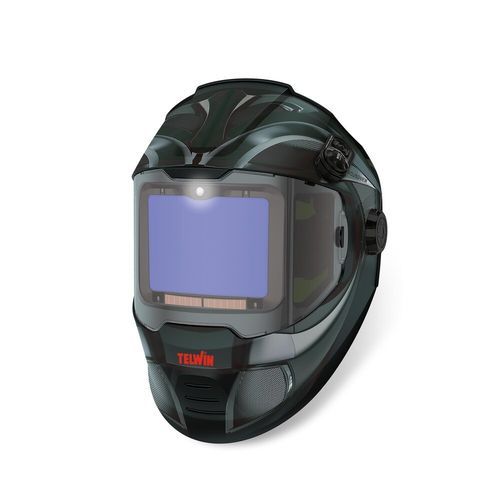

Auto-darkening welding helmet ROUNDVIEW LED
automaticopto-electronicelectronic

Auto-darkening welding helmet - ROUNDVIEW LED - TELWIN - automatic / opto-electronic / electronic
Auto-darkening welding helmet - ROUNDVIEW LED - TELWIN - automatic / opto-electronic / electronic
Auto-darkening welding helmet - ROUNDVIEW LED - TELWIN - automatic / opto-electronic / electronic - image - 2
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Type
auto-darkening, automatic, opto-electronic
Options
electronic, arc, MIG, MIG-MAG, MMA, headband, TIG

Description

Short description
  • Auto-darkening welding helmet suitable for MMA, MIG‑MAG and TIG welding (TIG from >2 A). LCD auto-darkening filter with True Colour technology and integrated front LED. Solar-cell powered for extended reliability in intensive use.
  • Panoramic protection and wide visibility: 180° viewing area with fixed side dimming openings. Adjustable auto-darkening range (DIN 3/4 ÷ 8/9 ÷ 13) and external sensitivity and delay controls to match workpiece brightness and welding process.
  • Hands-free continuous operation: the LCD filter darkens automatically when the arc strikes and returns to clear when the arc stops, eliminating the need to lift the helmet during work.
  • Improved visibility in low light: True Colour technology for more natural colour rendering and better definition; integrated front LED increases precision and safety in dim environments.
  • Comfort and adaptability: lightweight, adjustable headgear with internal adjustment system for optimal fit. Includes GRIND mode which locks the dark state for safe grinding operations.

Features
  • Adjustable auto-darkening filter (double range)
  • 180° panoramic viewing area with fixed side dimming openings
  • Optical class 1/1/1/2 (V2)
  • 4 sensors
  • External sensitivity and dark→light delay adjustment
  • Suitable for TIG from >2 A; supports MIG‑MAG and MMA
  • Grinding (GRIND) mode
  • Integrated front LED light
  • Solar-cell powered
  • Lightweight and ergonomic headgear

Optional
  • External protective glass: 220 x 136 mm, 2 pcs (code 804794)
  • Internal protective glass: 87 x 121 mm, 2 pcs (code 804795)
  • Side filter: 95 x 60-70 mm, 2 pcs (code 804796)

Technical specifications
  • Product code: 804800
  • Compatible processes: MMA, MIG‑MAG, TIG (>2 A)
  • Light state (clear): DIN 3
  • Variable dark state: DIN 4–8 / 9–13 (double range)
  • Switching time (light → dark): 0.08 ms
  • Delay (dark → light): 0.09 – 2 s (adjustable)
  • Optical class: 1/1/1/2 (V2)
  • Operating temperature: -5 / +55 °C
  • Sensors: 4
  • Viewing area (variants): 87 x 55 mm / 116 x 81 mm / 87 x 55 mm
  • Dimensions: 260 x 230 x 350 mm
  • Side dark state: 5 DIN
  • Integrated front LED and solar-cell power
