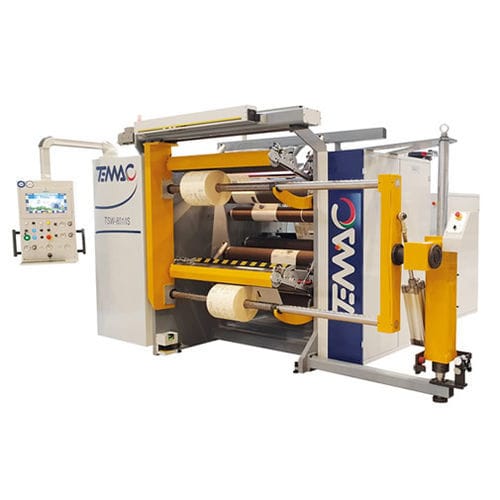

Automatic slitter-rewinder TSW 801

compactnetwork

The new TSW series join technology and mechanical excellence to match the best of adaptability and work satisfaction. These machines are able to work with a wide range of plastic film, laminated co-extruded film as well as paper and aluminium foil. Simplicity and friendly use are warranty of high standard on all work phases. On customer demand we may supply it with independent unwinding group. Compact unwinding group “Shaftless” Hydraulic arms to support the rewinding units, in order to help the worker during the unloading phase of the big diameter rewound rolls “Laser core” positioning aid system Independent motorization for top and bottom rewinding stations Main control panel assembled on adjustable pivoting frame All machine controls are managed by wide colour “Touch Screen” unit Digital servo vector inverters manages all A.C. Asynchronous Motors Machine is able to store all work parameters as “work menus” for an extremely quick and sharp machine setting High speed serial communication network controls all hardware units as PLC, “Touch Screen”, Inverter On customer request it’s possible to control the machine by modem or Ethernet for a total remote control and direct service Independent unwinding “Shaftless” group with footboard or bridge web passage Automatic shear circular blade units positioning system
