LED flashlight RW-LENS-4

fluorescentWoodUV

Overview
Professional 365 nm Wood's lamps for fluorescent inspections and nondestructive testing (magnetic particle inspection and dye penetrant). Designed for portable, handheld use and dynamic inspections. Available in battery-operated and mains-powered versions.

C4-B and C4-M

• Manufactured in Sweden.
• Available with mains or battery power options.
• Very wide and uniform beam thanks to LED miniaturization and precise overlap of four beams; no shadow zones near the lamp.

UV-A Clarity Torch

• Handheld UV inspection torch (Spectroline CLARITY 365 model).
• Designed for manual inspections with a 365 nm source.

UVee Beam and UVee BigBeam

• Manufactured in the United Kingdom.
• First in the world with intelligent electronic control: precise intensity and irradiance management.
• Optimized battery charge management to extend runtime; maintains beam intensity as battery discharges; LED temperature compensation for uniform brightness.
• Can be used while charging.
• Delivered with certifications such as ASTM E3022, Rolls Royce RRES90061 and Airbus AITM6-1001.

UV-Wide (UV-Wide-4K, UV-Wide-14K, UV-Wide-14K230VAC)

• Ergonomic range with comfortable grip.
• Available in mains and battery versions, with standard and high-power irradiation options.
• Made in Germany.

T7UVNDT

• 365 nm UV torch.
• Powered by battery or USB cable.
• IP67 rated and fallproof design.

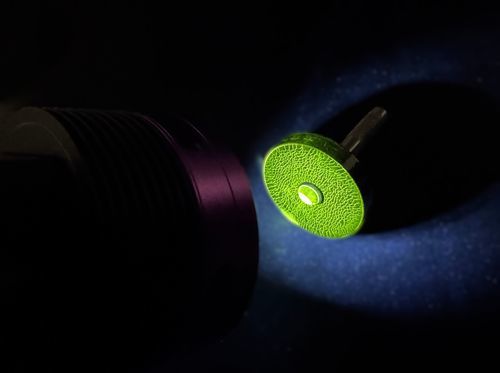

RW-LENS-4

• Innovative Wood's lamp for close-up inspection.
• Integrated LED technology with magnifying lens for detailed near-field work.

365S

• Super-lightweight LED Wood's lamp in high-strength anodized aluminium.
• Designed to be powerful, lightweight and cost-effective.

DUV-35W 365 / Labino

• 35 W DUV unit at 365 nm (Labino).
• Replacement bulb for Labino PS135 indicated among accessories/spare parts.

Technical documentation available
Datasheets and manuals are available for the various models (e.g. C4-B, C4-M, UV-A Clarity Torch, RW-LENS-4, UVee Beam, UVee BigBeam, UV-Wide, T7UVNDT, RW-EasyTorch).

Features / technical specifications

• Typical wavelength: 365 nm (UV-A) for fluorescent inspection.
• Power options: rechargeable batteries, mains power, USB (depending on model).
• Ingress protection: some models with IP67 rating and fallproof design.
• Materials: anodized high-strength aluminium (e.g. 365S) and rugged industrial constructions.
• Power management: intelligent charge management and beam intensity maintenance on some models (e.g. UVee Beam/BigBeam).
• Certifications (on some models): compliance with ASTM E3022, Rolls Royce RRES90061, Airbus AITM6-1001.
• Optical variants: wide, uniform beams for large coverage (e.g. C4) and close-inspection optics with magnifier (e.g. RW-LENS-4).
• Manufacturing origin: models produced in Sweden, the United Kingdom and Germany (depending on series).
