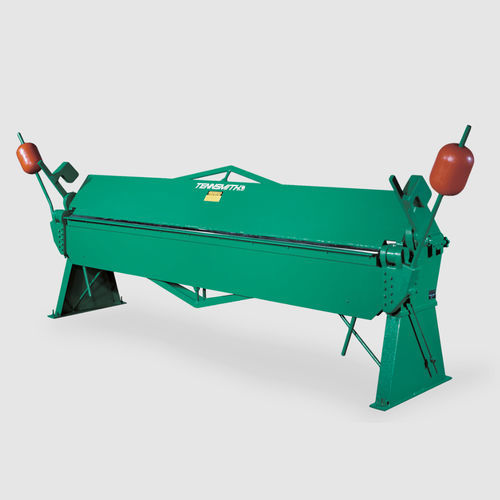

Manual swivel folding machine HB series

manual swivel folding machine
manual swivel folding machine
Add to favorites
Compare this product


Folding length

1,245 mm, 1,854 mm, 2,464 mm, 3,073 mm, 3,683 mm
(49 in, 73 in, 97 in, 121 in, 145 in)


With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii. Removable apron angle and insert permit 1/4-inch reverse bends in lighter material. Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel. Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes. Other adjustment features include: Leveling screws and lock nuts on the pedestals Jack screws and tensioner bolts on the apron Truss rods on the apron, base and upper beam Fully adjustable counter balances to facilitate the bending process Replaceable nose bar and apron inserts
