Tensioner

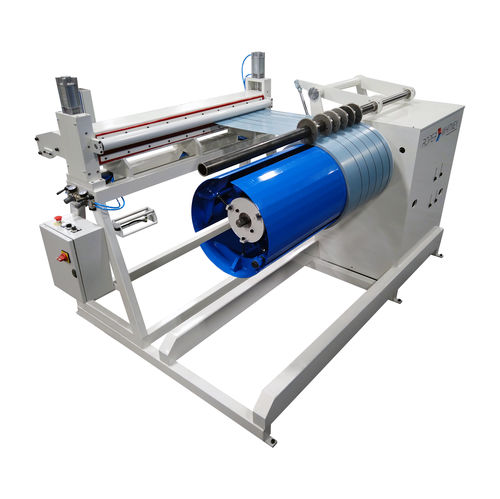

Roper Whitney’s Powered Recoilers are the perfect complement to the Autokut slitter/cut-to-length machines. This solution allows a master coil to be cut down into smaller widths to be run through a trim Rollformer machine. Features include adjustable guides that allow different widths of coil to be run through the machine without a taper in the material. POWERED DECOILER w/ Tensioner • Manually operated mandrel opening/closing • Air-operated separator disc shaft with double-action manual valve • Air-operated rubber covered material tensioning rolls with double-action manual valve • Adjustable sliding separators at tensioning unit • Tension pad with felt • Laser Loop control system • Hand-operated coil leading edge clamp on mandrel • Hardened steel separators before tension pad and on overarm • Rubber tension rollers • Max. Coil Weight: 2,200 lbs • Max. Coil Width: 49.25 in • Mandrel Expansion: 18-1/4 to 20 in • Overall Dimensions: 102 x 63 x 65 in • Speed: 85 FPM • Power Supply: 230 VAC 3 PH+Ground
