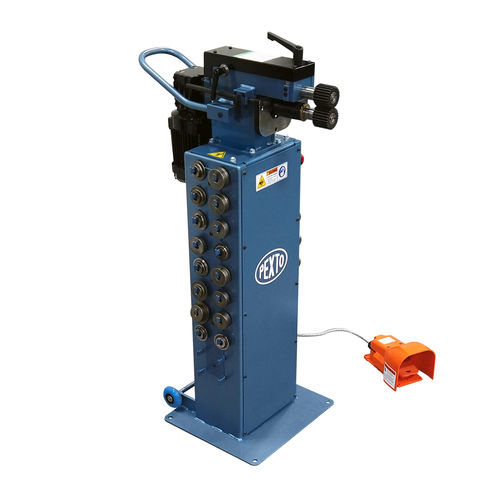

Sheet metal forming machine PR 720

elbowsteelrotary

The brand new Pexto PR 720 Powered Rotary Machine offers a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, burring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of the machines flexibility. The PR 720 is rated for 20 gauge mild steel and has a throat depth of 7” inches. A variety of different roll options may be ordered from the roll chart to use with this machine. Features include an adjustable throat depth gauge, clockwise and counter-clockwise rotation, 120 voltage, optional wheels for mobility and more. MODEL SPECIFICATIONS Capacity (Mild Steel): 20 ga / 1.0 mm Max. Throat Depth: 7” / 178 mm Shaft Center Distance: 2” / 51mm Offset Adjustment: 5/8 in / 16 mm Speed: 10-50 ft. min Motor: 120 v Power: 1/3 hp / .25 kw Working Height: 42 in Dimensions: 14 x 17 x 47 in Weight: 75 lbs
