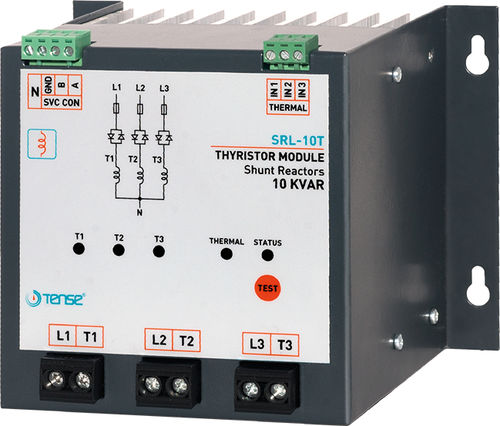

Inductive load compensator SRL-10T

SVC

TENSE Inductive Load Drives can be used with the new generation SVC-enabled TENSE reactive power control relays. The inductive load drive, which is connected to the reactive power control relay, is designed to drive 3 single-phase shunt reactors. In this way, the shunt reactors are triggered at the required ratio of each phase and commissioned as necessary and provide full intervention. 30kVAr Shunt Reactor Drive Capacity (3,33kVAr per phase) Separate Thermal Input for Each Shunt Reactor Driveability from 0% to 100% Intervention Without Delay The System With the Test Button Thermal and Status LEDs Separate Drive Notification LED for T1, T2 and T3
