Temperature data logger TCW220

humiditycurrentcarbon dioxide

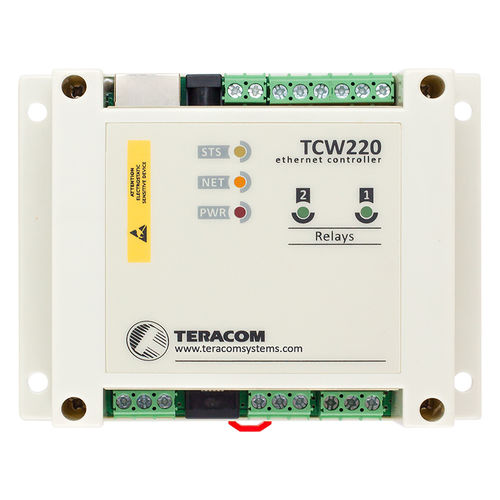

TCW220 is an Ethernet data logger with MODBUS TCP/IP support, the right choice for remote automation. TCW220 is an Ethernet data logger for general data acquisition applications. It has two analog inputs, with 10-bit resolution and two discrete inputs. It supports a 1-Wire interface for up to eight Teracom 1-Wire sensors – carbon dioxide, 0/20mA, AC/DC current, temperature, humidity, etc.) The Ethernet data logger also has two relays with normally open and normally closed contacts. All monitored parameters can be logged on a previous set time interval and/or on alarm conditions. The memory is large enough for at least 36 days with records on every minute. The log file can be periodically uploaded on a dedicated server with HTTP Post. Stand-alone Ethernet data logger for up to 70000 records; Password protected web based configuration and control; 2 digital “dry contact” inputs; 2 analog inputs with 0 to 10VDC range, with 10-bit resolution; Multiplier and offset for analog inputs; 2 relays with NO and NC contacts; 1-Wire interface for up to 8 Teracom sensors; SNMP v.2 support; SNMP traps to up to 5 recipients like alarm alert; MODBUS TCP/IP support; TLS 1.0, TLS 1.1 and TLS 1.2 support; e-mails to up to 5 recipients like alarm alert; XML/JSON status files; HTTP API commands; NTP support; Dynamic DNS support; Periodical HTTP Post for client-server systems; Remote firmware update.
