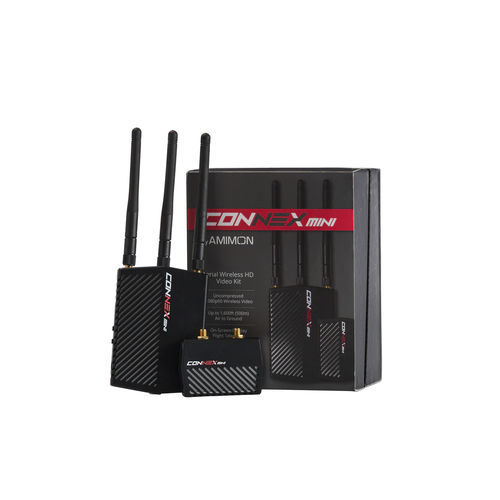

Data link system for UAVs CONNEX Mini

The CONNEX Mini Video Link system supports up to 1080p60 video resolution, zero-latency performance, and has a line-of-site range of up to 1600 ft. The transmitter weighs just 2.1 ounces, making it ideal for smaller UAS, UGV, and other Industrial or Construction equipment requiring remote HDMI video vision. The receiver is ideal for shorter-range applications, with smaller mechanical area constraints. Key Features: Zero-latency (HDMI into HDMI out: 1 mS) Up to 1600 ft. Line of Sight 5GHz band (5.1 to 5.8), using 40MHz channel Up to 1080p60 video resolution Up to 4 receivers can be paired and work together with a single transmitter AES 128 encryption, using RSA 1024 for key exchange Input voltage: 8-26 VDC (3S to 6S) Video Interface: Micro HDMI (Type D) input & HDMI (Type A) output OSD (input to transmitter) : CANbus / Mavlink Gimbal control (input to receiver, output from transmitter): S.BUS The Connex Mini package includes a transmitter and receiver unit. Each unit can also be purchased as a standalone to build the user application.
