Belt feeder TF-75L Orbital

rotatingfor hopperfor bulk materials

Product overview

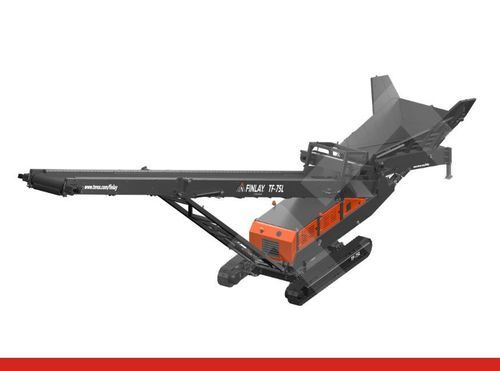

The TF-75L low-level orbital feeder is engineered for efficient low-height feeding of bulk materials across crushing, screening and material handling operations. Its 7 m3 (9.2 yds3) hopper with a 1,900 mm (6 ft 3 in) feed-in height and 3,500 mm (11 ft 5 in) feed width accepts direct loading from excavators, grab cranes and wheel loaders. Hydraulically folding hopper sides and tracked mobility provide rapid, safe on-site setup. An orbital centre-mounted slew bearing option enables 360° rotation for flexible positioning in open or closed circuit mobile and static plants.

Key features

• Low-level feeding design for direct loading without elevated plant access.
• Hydraulic feed height adjustment and pinless deployment of the main conveyor to enhance on-site safety.
• Hydraulic variable-speed feeder control for metered or controlled feed into crushers and screens.
• Hybrid power option with on-board electric motors allowing operation from external mains or the standard on-board engine.
• Long discharge conveyor (22.5 m / 73 ft 10 in) with up to 600 tph (661 US tph) transfer capacity and maximum stockpile capacity based on 37° angle of repose.

Specifications
Conveyor length: 22.5 m (73 ft 10 in)
Belt width: 1.2 m (48 in)
Max discharge height: 10.7 m (34 ft 6 in)
Transport dimensions (W×L×H): 3.2 m × 19.5 m × 3.63 m (10 ft 6 in × 63 ft × 11 ft 11 in)
Output potential: 600 tph (661 US tph)

Technical specifications

• Hopper capacity: 7 m3 (9.2 yds3)
• Feed-in height: 1,900 mm (6 ft 3 in)
• Hopper feed width: 3,500 mm (11 ft 5 in)
• Orbital centre-mounted slew bearing enabling 360° rotation
• Hydraulically folding hopper sides (standard)
• Hydraulic variable-speed feeder control
• Hybrid technology option: on-board electric motors or standard on-board engine
• Discharge conveyor length: 22.5 m (73 ft 10 in)
• Discharge conveyor capacity: up to 600 tph (661 US tph)
• Maximum stockpile capacity (37° angle of repose): 2,776 tonnes (3,060 US ton)
• Belt width: 1.2 m (48 in)
• Max discharge height: 10.7 m (34 ft 6 in)
• Transport dimensions: Width 3.2 m, Length 19.5 m, Height 3.63 m
