Mining screening unit 595

mobilevibratingfor pellets

Product summary

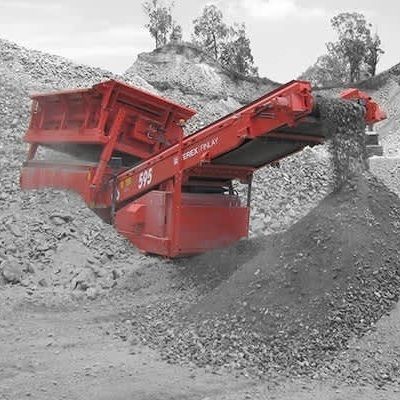

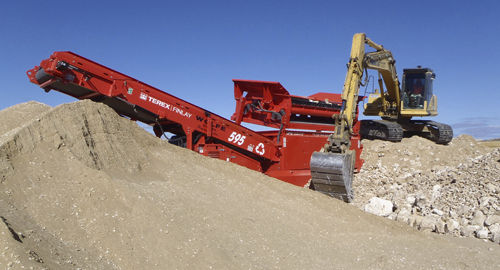

The Finlay® 595 Hydratrak is a self‑contained, high‑capacity mobile scalper designed for heavy applications such as waste reclamation, quarry faces and demolition. It features a heavy‑duty twin‑deck vibrating grid, radio remote control for movement and a tracked undercarriage for site mobility.

Key features

• Heavy‑duty aggressive twin‑deck scalping and screening grid.
• T‑Bar cassette top deck and meshed bottom deck for accurate product screening.
• Hydraulic folding main conveyor and hydraulic grid raise for rapid set‑up and tear‑down.
• Radio remote control for safe positioning and movement on site.

Vibrating grid and hopper

• 150 mm (6”) step abrasion‑resistant T‑Bar on top deck.
• Hydraulic folding for quick set‑up and tear‑down.
• Split‑level scalping grizzly with three interchangeable T‑Bar cassettes and feed plate mounted on 12 heavy‑duty springs.
• Feed opening with wing plates: 4414 mm (14’ 6”).
• Grid length (with feed plate): 2616 mm (8’ 7”).
• Grid angle: hydraulically variable between 2° and 25°.

Discharge conveyor

• Belt width: 1200 mm (48”).
• Hydraulic drive with steel skirting.
• Discharge height: 3400 mm (11’ 2”).
• Stockpile capacity: 83 m³ (108.6 yd³).

Undercarriage

• Fully protected tracked undercarriage with heavy‑duty deflector plate for worksite durability.

T‑Link telematics

• Optional remote plant maximisation telematics system to connect to Finlay equipment.
• Provides location and machine status data for remote performance monitoring and optimisation.
• Telematics hardware and software integration available as a factory option where applicable.

Additional notes
Product media (images and videos) and downloadable PDF brochure available.

Technical specifications

• Net engine power (Tier 3 / Stage IIIA): Deutz D914 L04i — 71 hp / 53 kW.
• Net engine power (Tier 4F / Stage IV): Cat C3.4 — 73.8 hp / 52 kW.
• Transport weight: 41,964 lbs / 19,035 kg.
