Mining screening unit 984

for recyclingmobilefor bulk materials

Product overview

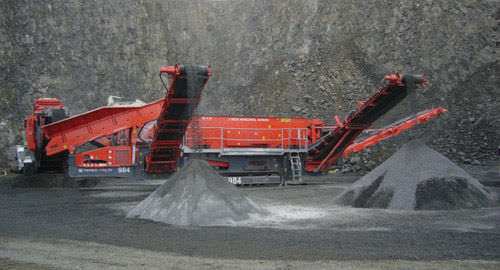

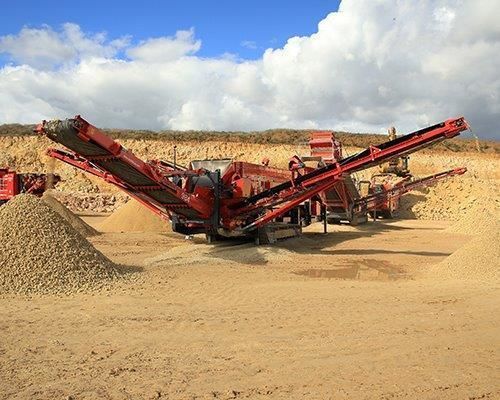

The Finlay® 984 is a 3-deck horizontal screener designed for easy set-up and versatile onsite operation in quarrying, mining and recycling. It incorporates the Terex® Cedarapids 6203 triple-shaft screen (each deck 6.1 m x 1.93 m) to produce four product sizes while maximising throughput and separation accuracy.

Key features

• Patented hydraulic folding conveyors produce a compact transport width of approximately 3000 mm.
• Adjustable elliptical (oval-throw) action reduces plugging and maintains screening efficiency.
• Fine tuning of stroke angle, amplitude and speed allows processing of materials up to approximately 800 t/h depending on configuration.

Screenbox

• High-capacity Terex® Cedarapids 6203 triple-shaft screen.
• Three screening decks, each 6.1 m x 1.93 m.
• Adjustable elliptical throw combining linear and circular amplitude; fixed horizontal screen angle.
• Galvanised access catwalks on both sides of the screenbox.
• Total screening area: 35.32 m² (approx. 380 ft²).

Hopper / Feeder

• Hopper capacity: 8 m³ (approx. 10.4 yd³).
• Feed height: 3.0 m (or 2.6 m with rear flap lowered).
• Feed-in width: 2.65 m.
• Belt feeder width: 1.4 m.

Conveyors

• Oversize PLUS conveyor: belt width 900 mm, working angle up to 22°, hydraulic folding for transport; discharge height approx. 4.8 m; stockpile capacity up to approx. 165 m³.
• Oversize MINUS conveyor: belt width 1,000 mm, fixed working angle 22°, hydraulic folding for transport; discharge height approx. 4.7 m; stockpile capacity up to approx. 155 m³.
• Midgrade conveyor: belt width 900 mm, working angle up to 22°, hydraulic folding for transport; standard discharge height approx. 4.8 m; stockpile capacity up to approx. 165 m³.
• Fines conveyor: belt width 900 mm, working angle up to 30°, hydraulic folding for transport; ground-level greasing access for bearings; discharge height up to approx. 5.4 m; stockpile capacity up to approx. 235 m³.

T-Link Telematics
T-Link telematics hardware and software (multi-year data subscription fitted as standard where applicable) provide remote connection to the machine for location, machine status and operational data to support remote monitoring and optimisation of utilisation.

Technical specifications

• Net engine power (Tier 3 equivalent): Caterpillar C7.1 — 202 hp / 151 kW.
• Net engine power (Tier 4F / Stage IV): Caterpillar C7.1 — 202 hp / 151 kW.
• Number of stockpilers: 4.
• Weight: approx. 43,100 kg (approx. 95,019 lbs).
• Screen decks: three decks, each 6.1 m x 1.93 m.
• Total screening area: 35.32 m².
• Hopper capacity: 8 m³.
