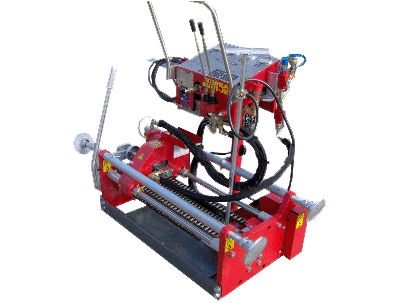

Horizontal directional drilling rig 4 - 6 t, max. 50 m | MJ 1400

fixedrotaryhydraulic

• 6 tons thrust and pullback force • maximum drilling lengths up to 50 m • bore channels up to Ø 260 mm (depending on ground conditions) • drill rods 0.5 m long • bending radius 15 m • extremly powerful with the new chain drive • with no power losses at low speeds • recommended hydraulic power 40 - 60 l/min at 175-235 bar • equipped with ADBS (Automatic Drilling and backreaming System) • ideal starting pit dimensions: 1.30 m long, 1.30 m wide, 0.30 m deeper than the drill axle. weight: 280 kg length: 1.11 m width: 0.60 m height: 1.15 m locating depth: 10-16 m (depending on the sonde)
