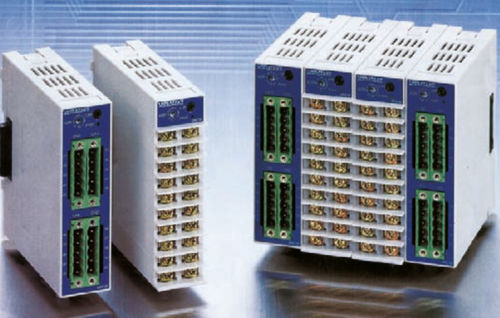

Single-loop temperature controller DMC10

multi-channelprogrammableprocess

Overview
Distributed multichannel modules for temperature measurement and control, combining single-loop accuracy with space-saving design and simplified wiring. Technology: Gas Ignition.

Features

• Each module controls up to 2 or 4 inputs depending on the model
• Fully programmable inputs: thermocouples, RTDs and various analogue voltage/current inputs
• Each input is isolated
• Accuracy ±0.5% FS
• Sampling cycle 500 ms
• RS485 communication at 19200 bps
• Compact dimensions 30 x 100 x 110 mm
• Wiring via terminal board or connectors depending on model
• Connectors for series mounting; DIN-rail mounting without sub-base
• Power distribution can feed up to 15 instruments from a single supply to reduce wiring
• Standalone operation: no separate CPU required
• PC-assisted calibration with trend monitoring during start-up
• Event analysis through AND/OR logic
• CT input for each channel (2-input models only)
• Quick Fitter algorithm to mitigate constant disturbance-induced excessive signals
• CE certified

Technical specifications

• Controlled variable: temperature measurement and control
• Controller type: distributed multichannel / single-loop controller modules
• Inputs per module: 2 or 4 (model dependent)
• Programmable input types: thermocouples, RTDs, analogue voltage and current
• Input isolation: each input isolated
• Accuracy: ±0.5% FS
• Sampling cycle: 500 ms
• Communication: RS485 at 19200 bps
• Dimensions (W x H x D): 30 x 100 x 110 mm
• Mounting: DIN rail; series mounting via connectors
• Wiring: terminal board or connectors depending on model
• Power distribution: single supply can power up to 15 instruments
• Operation: standalone (no separate CPU required)
• Calibration and monitoring via PC; event logic AND/OR; CT input on 2-input models; Quick Fitter algorithm
• Certifications: CE
