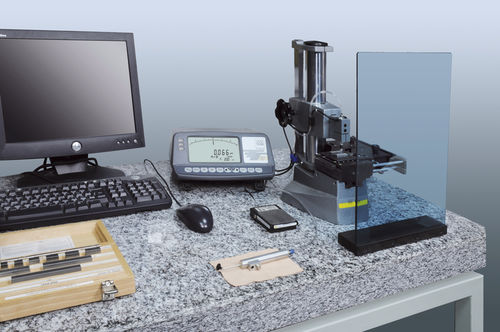

Temperature calibration equipment UPC series

high-precisionstandard

For comparative measurements • Measures gauge blocks of same nominal length by comparison. • Comes with the new template system for positioning the gauge blocks. • Single or dual template system for optimum ease of gauge handling. • Features TESA high-precision inductive probes. • Transfers on-line all measured length and temperature values. • Executes computer-aided data processing with all required correction values included. • Performs calibrations that meet the requirements of both ISO standards and EA guidelines (EAL – European cooperation for Accreditation of Laboratories). • Includes an execution for greater accuracy along with a calibration certificate (optional). Units - mm / in Repeatability - Single template system: 0,025 µm Dual template system: 0,015 µm
