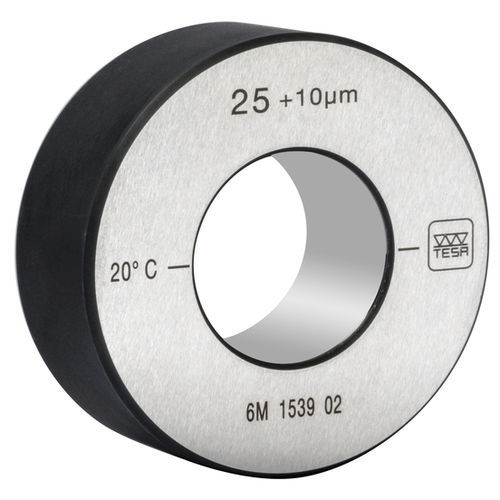

Ring gauge 00850 series

Max. perm. errors - The cylindricity errors make no allowance for a rim of 1 mm Particular characteristic(s) - All listed values are determined through a 2-point measurement taken at half-height of the setting ring. The measuring direction is marked with 2 strokes. The measured actual dimension is engraved on every setting master. 00850100 Max. perm. cylindricity error [µm] - 1,5 - Uncertainty of measurement [µm] - 1,5 - Diameter [in] - .2 - Weight [g] - 42 - Weight [lb(s - 0,0926 00850115 Max. perm. cylindricity error [µm] - 1,5 - Uncertainty of measurement [µm] - 1,5 - Diameter [in] - .3 - Weight [g] - 72 - Weight [lb(s - 0,1587 00850101 Max. perm. cylindricity error [µm] - 1,5 - Uncertainty of measurement [µm] - 1,5 - Diameter [in] - .35 - Weight [g] - 70 - Weight [lb(s - 0,1543
