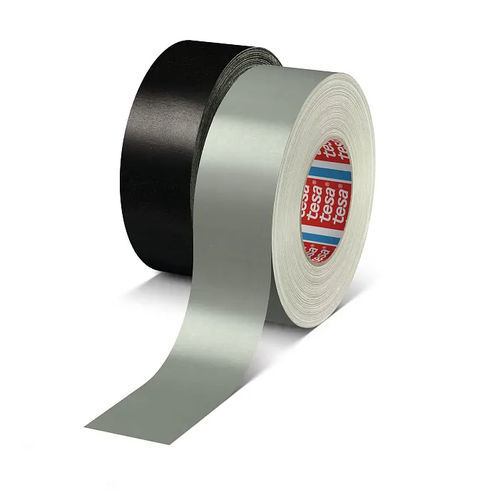

Masking adhesive tape 4657

acrylicfabricpaper liner

Product description
tesa® 4657 PV0 is an acrylic-coated cloth tape based on a 145 mesh woven cotton fabric with a thermosetting natural rubber adhesive. It is designed for die-cutting and automotive hole covering and masking during industrial painting processes. Versions available: PV0 (standard), PV1 (low unwind), PV9 (with yellow glassine paper liner, 76 µm).

Product Features

• High tensile strength and puncture resistance; adheres well to a wide range of substrates even at elevated temperatures.
• Conformable cloth backing with high resistance to paints, solvents and abrasion; waterproof.
• Acrylic coating provides excellent ageing stability suitable for permanent applications.
• Suitable for both temporary and permanent hole covering in vehicle production and for masking in industrial painting.
• Hand-tearable for easy handling; can be torn in straight edges along the woven mesh.
• Residue-free removal possible, even after high-temperature exposure.
• Low VOC according to VDA 278 analysis.

Application Fields

• Heat-resistant masking in vehicle and machine production (e.g. window flange masking, hole covering, powder coating) including repeated oven drying cycles.
• Partial masking during impregnation treatments.
• Covering of screw tap holes and drainage boreholes.
• Permanent interior and exterior hole covering.
• Fixing of flat cables (e.g. roof linings, door panels, mirrors).
• Splicing in reel-to-reel production.

Sustainable Aspects

• 77% bio-based carbon content (DIN EN 16640).

Product Construction
Backing material: Acrylic-coated cloth
Colour of liner: yellow
Thickness of liner: 76 µm (PV9)
Total thickness: 290 µm
Type of adhesive: thermosetting natural rubber
Type of liner: paper


Properties / Performance Values

• Elongation at break: 7.5 %
• Tensile strength: 105 N/cm
• Water resistance: good
• Abrasion resistance: very good
• Suitable for die cutting: yes
• Easy to remove: yes
• Liner release force: 0.3 N/cm
• Temperature resistance (30 min): 180 °C
• Easy to write on: yes
• Straight tear edges: very good
• Hand tearability: very good
• Mesh: 145 threads/inch²

Adhesion
Adhesion to steel: 4.6 N/cm

Certificates / Approvals
Used and approved by major OEMs

Technical specifications

• Product name: tesa® 4657
• Backing: Acrylic-coated cloth (145 threads/inch²)
• Adhesive: Thermosetting natural rubber
• Total thickness: 290 µm
• Liner: Paper (yellow, 76 µm for PV9)
