Conductive adhesive tape 60827

for EMI shieldingaluminumpaper liner

Product description
tesa® 60827 is a single-sided black electrically conductive aluminium tape designed for EMI shielding and grounding of electronic devices and components. It features an electrically conductive Al/PET backing with a single-sided conductive acrylic adhesive and a black PET laminate on the aluminium foil to provide insulation in the z-direction.

Product features

• Excellent electrical conductivity in X–Y direction
• Suitable for automatic application thanks to tear-resistant PET backing
• Reliable aging performance
• Good bonding strength on metal surfaces
• Consistent black appearance for visible assemblies

Application fields

• EMI shielding and grounding for electronic devices and components

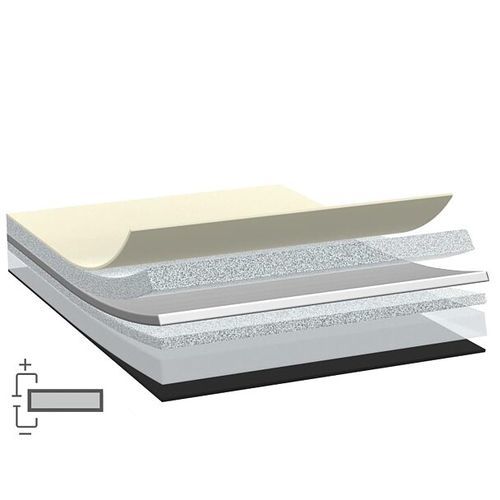

Product construction
Adhesive Type: conductive acrylic
Backing material: aluminium foil
Color: black
Color of liner: white
Liner Type: PE-coated paper
Thickness of liner: 130 µm
Total thickness: 64 µm

Properties / Performance Values
Tensile strength: 48 N/cm
Surface resistance x-y-direction (adhesive): 0.3 Ohm / square

Adhesion to Values
Adhesion to Steel (initial): 5.5 N/cm
Adhesion to Steel (after 14 days): 9 N/cm

Technical specifications

• Adhesive Type: conductive acrylic
• Backing material: aluminium foil with black PET laminate for z-direction insulation
• Total thickness: 64 µm
• Thickness of liner: 130 µm
• Tensile strength: 48 N/cm
• Surface resistance (x-y, adhesive): 0.3 Ohm / square
• Adhesion to steel (initial / after 14 days): 5.5 N/cm / 9 N/cm
• Color: black
• Liner Type: PE-coated paper
