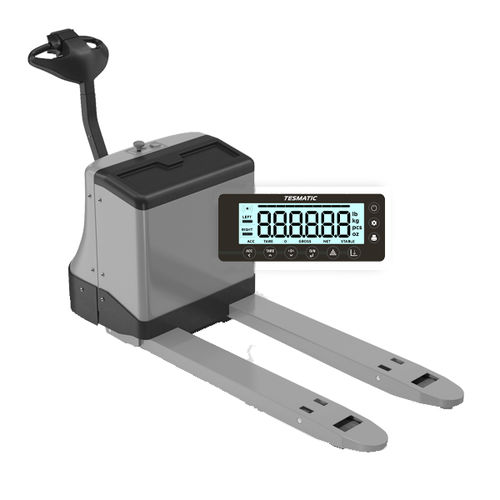

On-board weighing system EPMatic

for electric pallet trucks

Conversion of an electric pallet truck into a mobile weighing system. EPMatic is a fork integrated weighing system that has been specifically designed for electric pallet truck, and provides immediate and accurate weighing results. The system provides all relevant weighing functions and the latest data transfer technology. The system was designed to last, resist and avoid continuous technical service, even in industrial applications with extremely high requirements. The production process allows each system to be adapted exactly according to the requirements. The EPMatic solution is a combined weighing and overload protection system, that warns the operator directly on the electric pallet truck before the damage is made. Key features • Very strong construction • Easy to use and incredibly reliable • Load status through overload bar • Overload alarm prepared for any overload action • Gross, tare and net weight • Accumulation • Piece counting • Printable time and date stamped weighing reports • Wireless data communication • Barcode printouts • Specification : Data • Capacity : Same as truck • Accuracy : +/-0,1% of the applied load • Power supply : 12-80 VDC • Temperature range (operation) : -5ºC to +40ºC • Temperature range (storage) : -10ºC to +50 • Protection class : IP65
