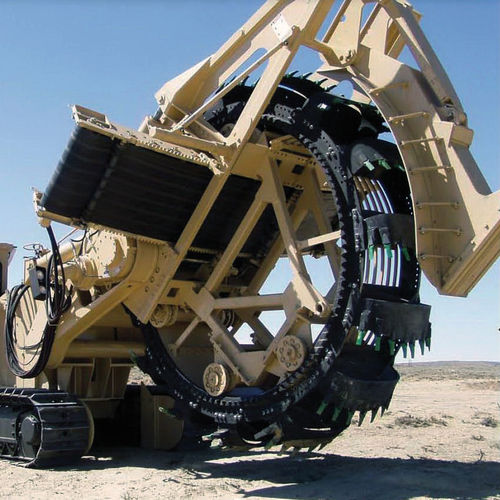

Bucket wheel trenchers conceived as a high-productivity machine for big diameter pipelines and utilities projects in dirt and light rocky soils, this model can dig up to 9’ (274 cm) deep and 66’’ (168 cm) wide. Its buckets can be equipped with conical or spade tools to ensure the maximum productivity according to the different ground conditions. Thanks to improved flywheels gearbox and new hydraulic components, 1475XL EVO Bucket Wheel trencher assures an increase in productivity and a decrease in teeth consumption and maintenance costs.
Extremely High productivity
Especially for pipelines and utilities projects in light rocky and dirt soils
Different types of soil
Soft soils or hard soils (like silty sand and hardpan)
Hard & Soft dirt soil
Clay
Laterite soil
Perma-frost (with appropriate teeth)
TrenchTronic: New user-friendly electronic system control
Easier trencher operation
Maximized excavation efficiency
Less dependence on operator skills
Re.M: Remote Monitoring System
Machine data remote monitoring
Fleet location management
Troubleshooting & operating conditions information
*information available according to machine configuration
TrenchIntel: DGPS guidance system
Extra-high precision 3D GPS system
Automatic depth and grade control
Autosteering to a predefined path
Pass optimization and fleet control
GPS data recorder (SmartTracker)
As Built data logger
Avoid stakeout resulting in time and cost reduction
Project proof upon completion
