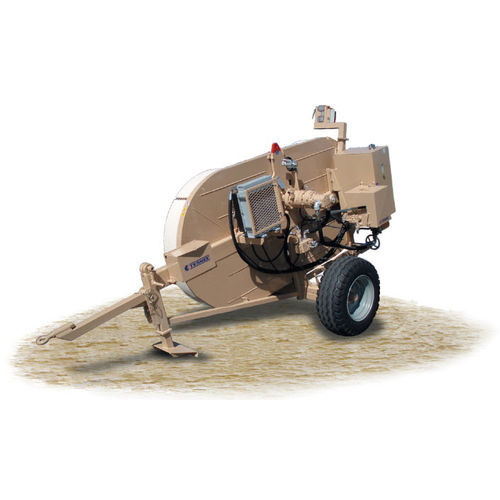

Cable tensioner FRS301
hydraulicwheel

cable tensioner
cable tensioner
cable tensioner
cable tensioner
cable tensioner
cable tensioner
Add to favorites
Compare this product


Characteristics

Applications
cable
Type
hydraulic
Other characteristics
wheel

Description

The machine is suitable to string one rope or cable conductor with fibre-optical cables (OPGW). The bull-wheel grooves are made up of high resistance interchangeable nylon sectors. PERFORMANCE MAX TENSION 25 kN MAX SPEED 5 km/h Note: the basic machine performance is calculated at 20°C and at sea level CHARACTERISTICS BULL-WHEEL DIAMETER 1500 mm MAX CONDUCTOR DIAMETER 36 mm MASS 1950 kg HYDRAULIC TRANSMISSION Hydraulic open circuit that provides very sensitive tensioning control and negligible deviations of tension in case of speed change. CONFIGURATION Negative self-acting hydraulic brake Hydraulic dynamometer Hydraulic oil cooling system Mechanical meter counter Rigid axle for towing at max speed of 30 km/h with mechanical parking brake Gearbox with 3 operating positions: • neutral position (with free bull-wheels for conductor loading and unloading) • low tension position (1.5 ÷ 5 kN) • nominal tension position Mechanical front stabiliser Grounding connection point
