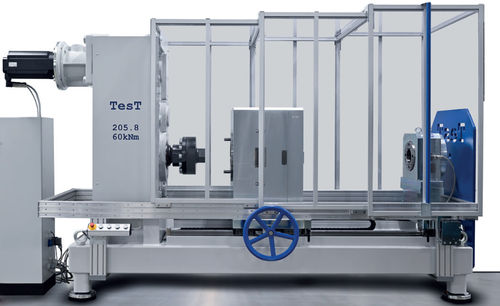

Torque testing machine TesTController 850

calibrationforceuniversal

The TesTController 850 is able to process up to six measuring channels with a 24 bit resolution and further six channels with a 10 bit resolution. In addition, it can handle three measuring channels for incremental signals. For controlling of drives there are three regulations channels available, so that even complex combination drives are possible (e.g. force and torque control at the same time). The maximum control frequency is 1 kHz, the maximum measurement frequency is 50 kHz. This testing machine controller 850 may recognize sensors that are equipped with TEDS chips, read their properties and calibration data, and automatically calibrate them (TEDS = Transducer Electronic Data Sheet nach IEEE 1451.4). Thus, these electronic units operate with dozens of different sensors, so that a complex recalibration is not required. All universal testing machines of the model series 106 - 115 are equipped with the TesTController 850. 2 channels with a 24 bit resolution (optional up to 6 channels) 2 channels with a 10 bit resolution (optional up to 6 channels) 1 channel for incremental signals (optional up to 3 channels) 1 control channel with a 16 bit resolution for electromotive drives (optional up to 3 channels) TEDS compatible
