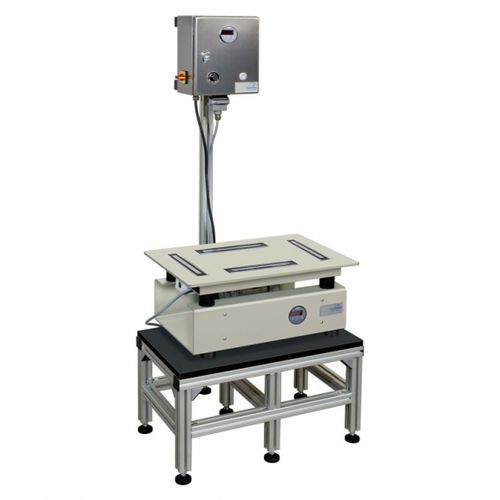

Vibrating table with magnetic clamping 2.0271SM2U

fresh concrete

High-frequency magnetic vibrating table Controllable speed approx. 4000 - 9000 rpm for 2 cube moulds or 1 beam mould Sound-reduced approx. 65 - 75 dBA Timer settable from 1 sec - 999 sec 600 x 400 mm effective area * For "earth-moist" and stiff concrete we recommend our magnetic vibrating table with two engines Scope of delivery • Magnetic vibrating table with magnetic clamping device (2 pairs of magnets) • Timer with speed regulator • Separate switch box • Base frame with a tripod Dimensions (wxdxh) = 650 x 550 x 1540 mm 230 V / 50 Hz
