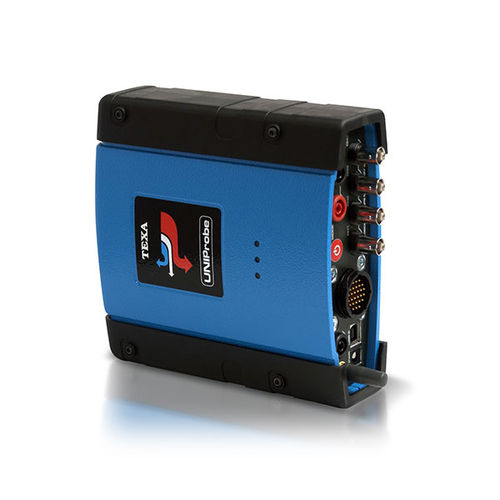

Analog oscilloscope UNIPROBE

portable4-channel

UNIProbe incorporates 6 different instruments in the one unit, including an oscilloscope with four independent channels that can take accurate and professional measurements from voltage sensors and current clamps. UNIProbe lets you test batteries, starting and charging systems, perform electrical tests on CAN networks, measure voltage and resistance using a built-in multimeter, and measure fuel pressure with an external electronic sensor. You can even use a signal generator to simulate the PWM signals produced by sensors and the PWM power signals that drive electromechanical actuators like solenoid valves and common rail pressure regulators. Measurement System Software Easy access to the amazing functions of UNIProbe is ensured by MSS (Measurement System Software), developed by TEXA especially for this device, and by the complete IDC5 software Platform. The SIV (Signal Information Viewing) function deserves a special mention. This uses a software algorithm developed by TEXA specifically to compare acquired data with values recorded in an internal database. Unusual signals can therefore be identified instantly, making your work faster and easier than ever. POWER SUPPLY 8 – 32 VDC INTERNAL BATTERY RECHARGE VOLTAGE 10 – 32 VDC, built-in 7.4 V, 1Ah lithium battery BATTERY AUTONOMY up to 5 hours MAXIMUM CURRENT DRAW 1,2 A at 12 V ENVIRONMENTAL Operating temperature: 0 ÷ +45°C Storage temperature: – 20 °C ÷ 60 °C Operating relative humidity: 10 % ÷ 80 % without condensation DIMENSIONS 155x178x55 mm (excluding Bluetooth antenna) WEIGHT 1,2 kg
