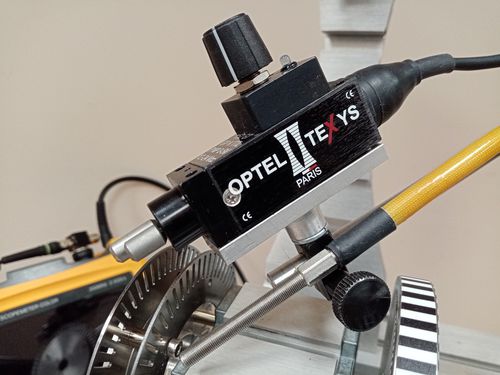

Linear speed sensor 152 G6

opticaldigital outputnon-contact

Optical fibre speed sensor with TTL PNP output Power supply 9 to 30 Vdc Bandwidth: continuous to 100 KHz Detection insensitive to electromagnetic interference Standard version When to use it? Tachymetry, acyclism, torsional vibration, slip, angular velocity measurement Non-contact measurement. Preferable when fibre lengths are longer than 6 metres also for detecting poorly reflecting teeth If the speed requires a higher bandwidth with high power, see the 152M model Technical specifications With a frequency of 100 KHz, the 152G6 benefits from the electronics of the 152G7 model, which is more powerful in transmission, but with a lower bandwidth. Power consumption remains below 100mA with a 9 to 30VDC power supply. TTL output Without clock, therefore not pulsed, for an excellent transcription of speed variation and the analysis of cyclo-stationary phenomena. Patented 'head mounted indicator' to save installation time and to facilitate use and possible adjustments
