Absolute pressure sensor MP-1.55-A-ST
membranestainless steel

Absolute pressure sensor - MP-1.55-A-ST - TEXYS - membrane / stainless steel
Absolute pressure sensor - MP-1.55-A-ST - TEXYS - membrane / stainless steel
Add to favorites
Compare this product
Go to the TEXYS website for more information

Characteristics

Pressure type
absolute
Technology
membrane
Material
stainless steel
Pressure range

Min.: 2 bar
(29.01 psi)

Max.: 7 bar
(101.53 psi)

Process temperature

100 °C
(212 °F)

Description

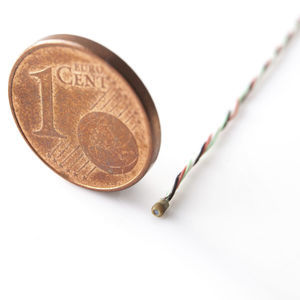

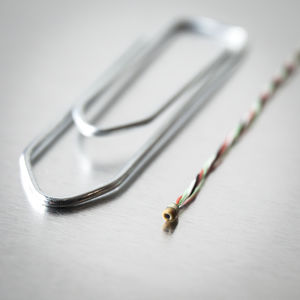

The MP-1.55-XXX-YYY-A-ST is a 1.55mm absolute pressure sensor with a grid and can withstand temperatures up to 100°C. Product Description The MP-1.55-XXX-YYY-A-ST is a small pressure sensor with an inconel or stainless steel grid that can be opened or closed. YYY refers to the different pressure ranges available (002, 004, 007) bar and XXX to the different grid configurations (TIG, TSG, TIO, TSO). This pressure sensor is absolute, it has a cylindrical configuration. A diameter of 1.55 mm A high resonance frequency of up to 2.7 MHz This sensor has been used in various applications such as instrumentation, aerodynamic tests, pumps, biomedical, ...
