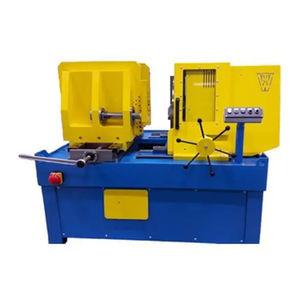

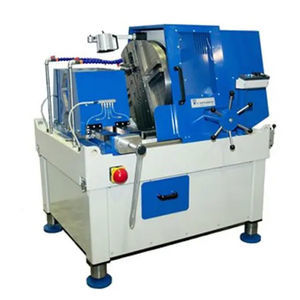

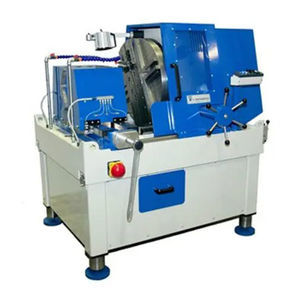

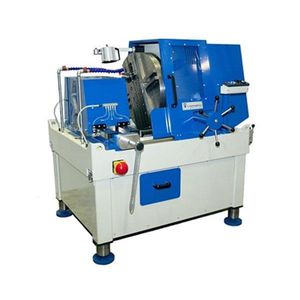

Pipe beveling machine PBM-8

electricstationaryautomatic

Clamping range: - 20 - 225 / 280 (1/2" - 8" / 10") Turning range: - 10 - 280 mm Clamping: - Prism clamp - electric Machining: - Carbide inserts Max. wall thickness: - 20 mm in one pass. Feed - manual Feed travel - 100 mm. Measurements - 1250 x 980 x 1650 mm. Weight - 1450 kg Cooling pump - built in SIMPLE The pipe is clamped with a self-centering prism clamp (for which no spare parts are needed). The prism clamp can handle the entire clamping range of the machine. The specially developed chisel set allows the machining of all pipe sizes within the range of the machine. Without having to adjust chisels again and again. EXACTLY Thanks to the stability of the machines, every finishing operation is the same. This promotes the welding result, which is of the greatest importance when welding with, for example, a welding robot. FAST The table below gives a few processing times that were measured during the making of a weld seam pre-treatment of 30 °. Naturally, several types of final operations can be performed. It is also possible to do a combination of different final edits simultaneously.
