Batch reactor PhotoCube™
continuousfor the pharmaceutical industrymultipurpose

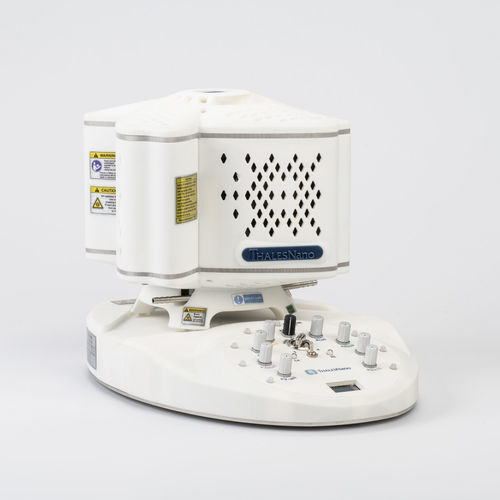

Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose - image - 2
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose - image - 3
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose - image - 4
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose - image - 5
Batch reactor - PhotoCube™ - THALESNANO Inc. - continuous / for the pharmaceutical industry / multipurpose - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
continuous, batch
Applications
laboratory-scale, photochemical processes, for the pharmaceutical industry, multipurpose, for teaching
Function
synthesis, catalytic, with magnetic stirrer, bottom stirred
Configuration
benchtop, modular, custom, mobile, tubular
Temperature
heating, with thermostat
Treatment method
chemical, low-pressure, basic, UV
Number of reactions
multiple, single-reaction
Material
glass
Other characteristics
safe, micro, inert, multi-wavelength, stop-flow, g scale

Description

This system is an award-winning, innovative instrument of ThalesNano that revolutionizes photochemical reactions in the laboratory. With its advanced design and cutting-edge features, the PhotoCube offers unprecedented control and precision in photochemistry experiments. The PhotoCube boasts exceptional versatility, accommodating various types of batch and flow reactions, and providing precise control over parameters such as light intensity, wavelength, and exposure time. Features of the PhotoCube • Batch and flow reactions in the same platform • 7+1 wavelengths in one instrument, available wavelengths: 365, 395, 457, 500, 523, 595, 623 nm and white • Available batch reactor volumes: 4 mL and 25 mL glass vials • Available loop volumes: 5-25 mL • Available loop materials: FEP or PFA • Temperature range: from 20 to 80 °C • LED input power: up to 128 W/color • User-defined parameters, including wavelength used, light intensity, and speed of stirring • Temperature feedback • External temperature control option • Built-in safety features: to prevent the user from exposure to high-intensity light Photochemistry in flow Photochemistry is a powerful field within organic chemistry that explores the reactions and transformations initiated by light. One notable example is the widely-studied Minisci reaction, which offers a particularly valuable approach for creating new C(sp2)-C(sp3) bonds. However, traditional batch procedures often suffer from lengthy reaction times. Fortunately, the emergence of continuous flow technology has revolutionized the field of photochemistry.
