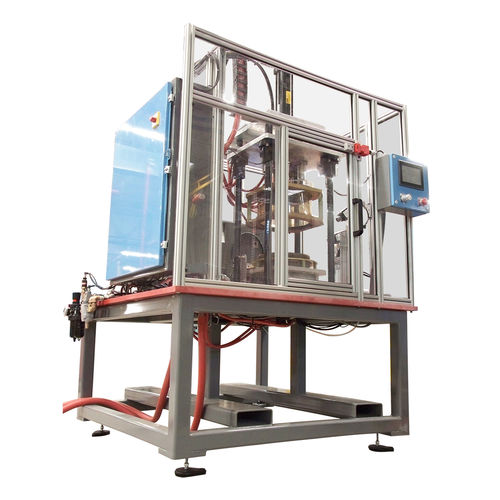

Induction brazing machine
automaticfor automotive applications

induction brazing machine
induction brazing machine
induction brazing machine
induction brazing machine
induction brazing machine
induction brazing machine
induction brazing machine
Add to favorites
Compare this product


Characteristics

Technique
induction
Operating mode
automatic
Applications
for automotive applications
Power

Min.: 25,000 W

Max.: 50,000 W

Description

Radyne Carbide Brazing Systems deliver unmatched quality, repeatability, throughput, and safety that can not be achieved with flame brazing systems or hand held induction systems. The Radyne BrazePress™ induction brazing system has a built in controlled atmosphere pneumatic press chamber capable of up to 1100 lb. [498 kg]. Induction Carbide Brazing, as opposed to batch heating, provides for better quality and higher energy efficiency, as it focuses the energy on the braze joint alone, rather than heating the entire part. Radyne’s patent pending fluxless induction brazing technology is integrated into systems used by the world’s leading automotive and aerospace suppliers to braze fittings to fuel lines and rails; setting tFEATURES Controlled atmosphere Pneumatic pressure capabilities of 1100 lbs [498 kg] Quick disconnect coil interchange PID control loop with pyrometer temperature feedback Incremental temperature set points to assure even heating TECH SPECS Carbide Brazing Systems Temp RangeAmbient 70 F [21 C] – 2192 F [1200 C] Pneumatic PressureUp to 1100 lbs [498 kg] Power Output25-50 kW Frequency Range20-80 kHz Max Duty Cycle100%he standard for high quality, lean production cells.
