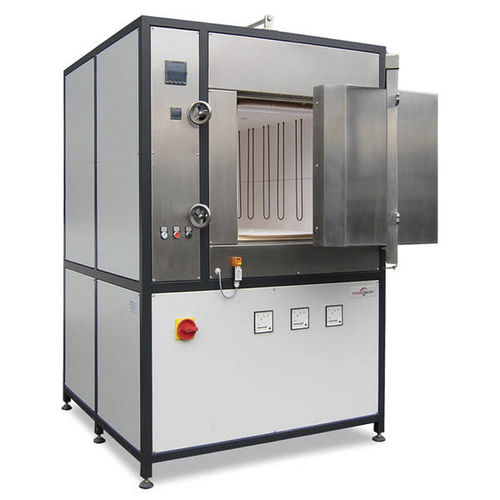

Sintering furnace HTK series

chamberelectrichigh-temperature

High-temperature chamber furnacesT max. 1500 °C, 1600 °C, 1750 °C and 1800 °CBroad range of standard furnaces with a chamber volume of 16 – 500 l.Furnaces supplied in customised configurations to match the systems precisely to the desired processesAll furnace models excel with maximum precision and convenience as well as short heat-up and cooling times and low power consumption.For temperature ranges between 1500 °C and 1600 °C heated with SiC rods and between 1600 °C and 1800 °C with MoSi2 heating elementsOuter housing with robust, aesthetic frame constructionDouble-walled housing with forced cooling, hence very low outer-wall temperatureStainless steel door and door frameDoor with parallel motion, swings hot side away from operatorFurnace insulation made of high-quality aluminium oxide fibre materials with low thermal mass, rapid heating and cooling possible; exhaust opening in furnace roofReinforced bottom for heavy batchesThe furnaces are heated by the side walls. Additional heating by the rear wall is available as optional extra.Cutting-edge switching and control system, thyristorcontrolled heating elements, high-precision furnace regulation, wear-free, noiseless
