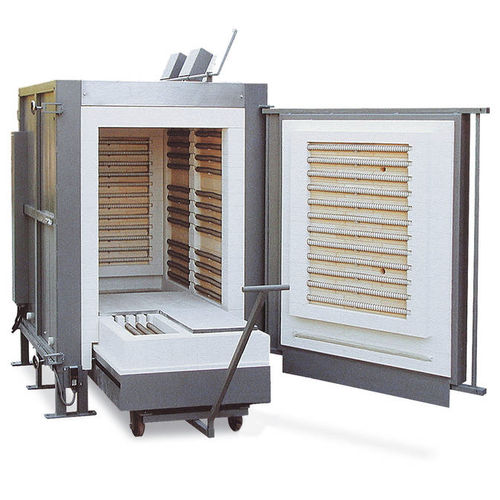

Heating kiln WK series
car bottomelectricfor glass working

heating kiln
heating kiln
heating kiln
heating kiln
Add to favorites
Compare this product


car bottom
Heat source
Other characteristics
for glass working, high-volume

Min.: 1,170 l (309.1 gal)

Max.: 7,080 l (1,870.3 gal)

Maximum temperature

Min.: 900 °C (1,652 °F)

Max.: 1,400 °C (2,552 °F)


Bogie-hearth Kilns WK 1000/09 – WK 7000/14T max 900 °C – 1400 °CFor temperatures up to 900, 1280, 1340 and 1400 °CDouble-lined casing with rear ventilation > Low outer-casing temperature, corrosion protection due to absence of condensationKiln door designed for simple and easy operationRugged bogie hearth on highly rigid rubber casters > Freely movable, easily steeredBottom heating elements in the bogie hearth covered with SiC plates > Protection of bottom heating elements, charging made easy by level supportWith bottom damper and manually operated exhaust air flaps in top of kilnHigh-quality, multilayer insulation with refractory bricks featuring special rear insulation > Low heat loss, low power consumptionHeating from 5 sides (left, right, rear wall, door, bogie hearth) > Extraordinarily uniform temperature distributionHigh-quality heating elements > Long service lifeHeating elements wound on ceramic tubes, mounted in front of the kiln wall > Allows free heat radiation into chamber, no heat accumulation
