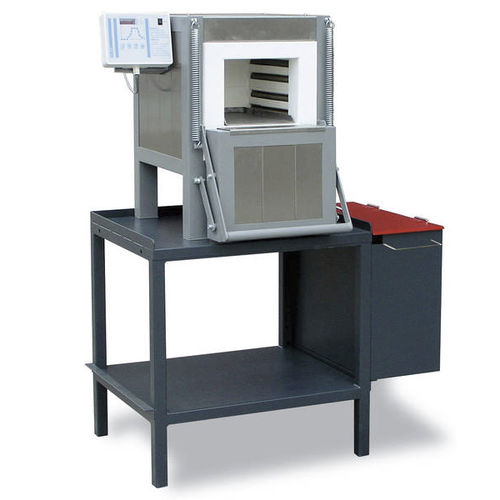

Annealing furnace KM series
chamberelectricbenchtop

annealing furnace
annealing furnace
annealing furnace
annealing furnace
annealing furnace
Add to favorites
Compare this product


Characteristics

Function
annealing
Configuration
chamber
Heat source
electric
Other characteristics
benchtop, stainless steel
Capacity

Min.: 8 l (2.1 gal)

Max.: 88 l (23.2 gal)

Maximum temperature

1,300 °C (2,372 °F)

Description

Annealing FurnacesT max 1300 °CRugged chamber furnaces especially designed for robust heat treatment purposesDouble-walled housing with rear-ventilation to ensure low outercasing temperaturesSide walls and door of outer casing made of stainless steel, door lintel also made of stainless steelParallel-guided door, moving downwards, can be opened up to T max.Delivery including furnace base (KM 50/13 - KM 90/13)Efficient multilayer insulation made of high grade and strong fire bricks for low heat losses, low energy consumption and low energy costsHeating from three sides (both side walls and bottom) for good temperature uniformity inside the furnace chamberHigh grade heating elements on ceramic supporting tubes, mounted in front of the insulation for free heat radiation (KM 50/13 - KM 90/13)Bottom heating elements protected by silicon carbide plates with high mechanical strength and heat conductivityExhaust pipe in the rear wall
