Raman spectrometer DXR3 SmartRaman+for the pharmaceutical industryfor spectroscopyfor mobile machines
Add to favorites
Compare this product
Characteristics
- Type
- Raman
- Domain
- for industrial use, for spectroscopy, for the pharmaceutical industry, for mobile machines, for process and scientific applications
- Configuration
- in-line
- Other characteristics
- high-resolution, automated
- Wavelength
532 nm, 785 nm
Description
Overview
Key capabilities
Applications
Product variant & ordering
Resources
Technical specifications

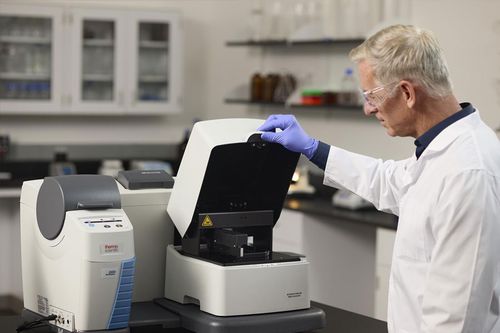

- The Thermo Scientific DXR3 SmartRaman+ Spectrometer is a DXR-platform Raman spectrometer engineered for inline, at-line and semi-automated quality testing in pharmaceutical and industrial manufacturing as well as research and method development.
Key capabilities
- High-throughput inline and automated sampling for fill-and-finish pharmaceutical testing, accelerating batch release compared with traditional workflows.
- Non-destructive Raman measurements possible through many finished-product containers and packaging.
- User-exchangeable lasers (532 nm and 785 nm) to support a broad range of sample types, including highly fluorescent materials.
- Flexible sampling: supports custom sample holders and multiple container formats (vials, cuvettes, microplate wells, bottles).
- Automated Sampling Array (ASA) support for multi-sample, high-throughput measurements.
- OPC UA industrial connectivity (standard) for integration into manufacturing environments and Industry 4.0 workflows; instrument optimised for local or remote OPC UA control.
- Designed to minimise operator interaction and reduce the need for Raman specialists in routine production workflows.
Applications
- Pharmaceutical manufacturing — rapid fill-and-finish testing and batch release support.
- Industrial quality control — high-throughput verification with custom sample supports.
- Research & development — method development and high-resolution spectral acquisition across diverse sample types.
Product variant & ordering
- Catalog number: 912A1293 — DXR3 SmartRaman+ Spectrometer — Size: Each — Price: Request a quote
Resources
- Technical notes and application notes on high-throughput Raman analysis and biopharmaceutical spectroscopy approaches.
- Product brochure and calibration/alignment technical notes for instrument maintenance and performance verification.
Technical specifications
- Brand: Thermo Scientific
- Model: DXR3 SmartRaman+
- Interchangeable lasers: 532 nm and 785 nm
- Sampling modes: inline, at-line, semi-automated; Automated Sampling Array (ASA) compatible
- Connectivity: OPC UA (industry standard) for local/remote control
- Measurement: non-destructive Raman through common containers (vials, bottles, microplates, cuvettes)
- Intended uses: pharmaceutical fill-and-finish QC, industrial QC, R&D and method development
- SKU: 912A1293
- Usage statement: For Research Use Only. Not for use in diagnostic procedures.
