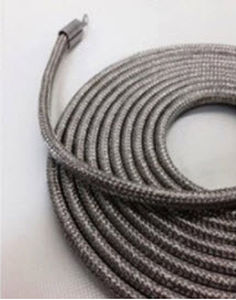

Constant-wattage heating cable FG200

Constant Wattage Parallel Circuit Heating Cable for ordinary area use. FG200 is a parallel circuit, medium wattage, constant power heating cable that can be cut to length to fit the application parameters. It is designed to operate in a variety of process applications in non-chemically aggressive environments where versatile flexibility and on-site assembly is required. FG200 comprises twin electrical conductors insulated with highly flexible silicone rubber as primary insulation. The heating element is spiraled around the primary insulation and connected to the conductor at pre-defined zone lengths of 500mm. The secondary insulation is made of flexible silicone rubber. For additional mechanical protection and electrical safety reasons, the heating cable can be delivered with an optional metal braid.MAX Process temperature: up to 180°C
