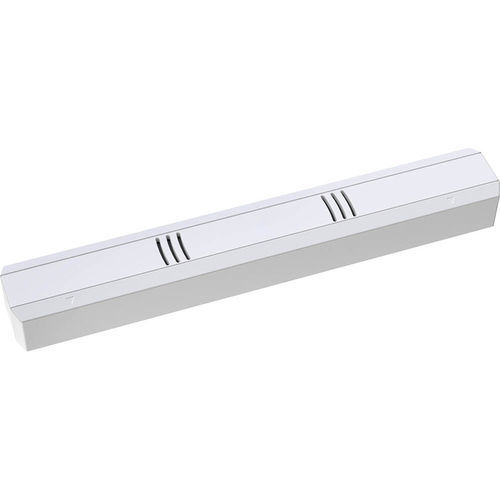

Motion detector MCS EnOcean

humiditypassive infraredoptical

Multi compact sensor with EnOcean interface for measuring temperature, humidity and motion. • Application/type : Motion detector, Room sensor • Purpose : Room Climate Control, Measure values • Measured values : temperature, relative humidity, luminosity, motion, presence • Interface : EnOcean (868 MHz) • Sensor : integrated digital temperature transmitter, PIR (passive infrared), ambient light sensor with precise optical filtering appropriate to the human eye • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW • Data transmission : unidirectional • Operating range temperature (°C) : 0..+40 • Operating range humidity : max. 85% rH non-condensing • Power supply : battery type AAA • Enclosure : PC V0 • Colour : pure white • Protection (IP) : IP20, according to EN 60529 • Mounting : surface-mounted flat on base using included adhesive pad or screws • Delivery content : incl. adhesive foil for mounting, incl. battery type AAA • Packaging length (mm) : 150 • Packaging width (mm) : 100 • Device width (mm) : 21 • Device height (mm) : 15
